Aerial And Handheld SLAM EasyScan X10 / X10+ Versatile LiDAR System
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EasyScan X10 / X10+
Brand:
EPiC LiDAR
Model:
X10 / X10+
Working Mode:
Handheld SLAM And Aerial
Dataset:
Contact Us
Accuracy:
5cm
Flying Height:
Suggest 80m-120m
Highlight:
Aerial lidar system
,Handheld lidar system
,X10+ 3d lidar scanner
Product Description
Aerial And Handheld SLAM EasyScan X10 / X10+ Versatile LiDAR System
Product Attributes
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | X10 / X10+ |
| Working Mode | Handheld SLAM and Aerial |
| Dataset | Contact us |
| Accuracy | 5cm |
| Flying Height | Suggest 80m-120m |
Product Description

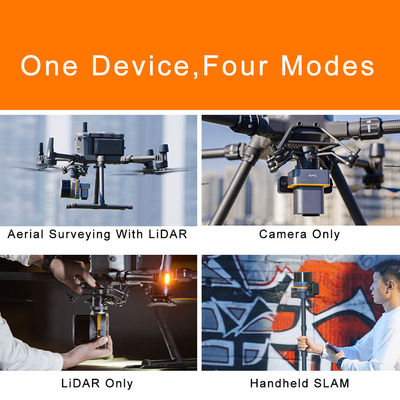

The EasyScan X10/X10+ integrates cutting-edge LiDAR, GNSS, and high-precision IMU with an aerial metric camera for unparalleled accuracy in aerial and ground surveying. With its modular design, this system can switch between airborne, SLAM, and camera-only modes, ensuring optimal data capture in any scenario. Whether for UAV-based surveys or mobile scanning, it's your one-stop solution for topographic mapping, smart grids, and civil engineering projects.
Product Specifications
| System Parameter | X10 | X10+ |
|---|---|---|
| Weight | 280g | |
| Dimension | L159*W118*H127(mm) | |
| Average Power Consumption | 25W | 26W |
| Power Supply | 10~30V DC | |
| Device Interface | DJI Skyport/other interface available upon request | |
| Data Storage | USB-disk 256GB | |
| Operating Temperature | -10℃~50℃ | |
| Storage Temperature | -30℃~60℃ | |
| System Accuracy | 5cm | |
| Compatible Platform | DJI M300 RTK/Other UAV models | |
Key Features
- High efficiency: Ultra-light aerial survey module, image acquisition not limited by LiDAR measurement range, flight height can be appropriately increased to improve the operation efficiency.
- Not affected by light: LiDAR is not affected by the environment, has less side overlap, wider coverage of a single flight, and data can be easily collected even at night.
- No signal limitation: Switch to SLAM mobile scanning mode, no limitation of GNSS signal, indoor and outdoor data integrated, collection makes the 3D data more complete.
- Real-time monitoring: Simultaneous acquisition of point cloud and orthophoto to achieve the real-time monitoring of flight trajectory, 3D point cloud, and images during the whole flight of the system.
Accessories
X10:
16 lines scanner *1
Camera *1
Skyport *1
Software dongle *1
Camera Adapter *1
GNSS receiver *1
X10+:
32 lines scanner *1
Camera *1
Skyport *1
Software dongle *1
Camera Adapter *1
GNSS receiver *1
SLAM handheld holder *1
Applications
Smart Grid
Topographic Mapping
Emergency Rescue
Smart Mining
Civil Engineering
Pipeline Inspection
Case Study
EasyScan X10+ is applied to measure the underground Parking Lot
Sample Data Display
*The technical parameters and configuration of our products are subject to change without notice.
Notice:
① Weight includes LiDAR, GNSS, high-precision IMU, and aerial metric camera module
② Perpendicular to the flight direction, with the effective FoV angle of LiDAR
③ Weight includes main body, SLAM dock, telescopic rod, and camera
④ Tested at 25°C~27°C; charging time and power supply time will vary according to different conditions
Notice:
① Weight includes LiDAR, GNSS, high-precision IMU, and aerial metric camera module
② Perpendicular to the flight direction, with the effective FoV angle of LiDAR
③ Weight includes main body, SLAM dock, telescopic rod, and camera
④ Tested at 25°C~27°C; charging time and power supply time will vary according to different conditions
