X10 / X10+ Real Time LiDAR Monitoring And Data Collection

MOQ:	1 set
Price:	Contact us
Standard Packaging:	Tool Case
Delivery Period:	2 weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC

Model Number

EasyScan X10 / X10+

Brand:

EPiC LiDAR

Model:

X10 / X10+

Working Mode:

Handheld SLAM And Aerial

Dataset:

Accuracy:

Flying Height:

Suggest 80m-120m

Highlight:

X10+ lidar scanner device

X10 lidar scanner device

120m lidar system

Product Description

Easy Scan X10 / X10+ Versatile 3D laser Scanner Handheld SLAM and Airborne Drone LiDAR

Multiple views from one

The EasyScan X10/X10+ integrates cutting-edge LiDAR, GNSS, and high-precision IMU with an aerial metric camera for unparalleled accuracy in aerial and ground surveying. With its modular design, this system can switch between airborne, SLAM modes, ensuring optimal data capture in any scenario. Whether for UAV-based surveys or mobile scanning, it’s your one-stop solution for topographic mapping, smart grids, and civil engineering projects.

The X10/X10+ offers simultaneous point cloud and orthophoto capture, allowing real-time monitoring of flight paths, 3D point clouds, and image data. Ideal for topographic surveys, it enhances data accuracy with GNSS and SLAM versatility.

Products Introduction

Products Specification

Model		XI0	XI0+
System Parameter	Weight	280g
	Dimension	L159W118H127(mm)
	Average Power Consumption	25W	26W
	Power Supply	10~30V DC
	Device Interface	DJI Skyport/other interface available upon request
	Data Storage	USB-disk 256GB
	Operating Temperature	-10℃~50℃
	Storage Temperature	-30℃~60℃
	System Accuracy	5cm
	Compatible Platform	DJI M300 RTK/Other UAV models
Laser Unit	Scanning Principle	Mechanic Rotation Mirror
	Laser Class	ClassⅠ
	Wavelength	905nm
	Measurement Range	0.05m~120m@10%Reflectivity
	Range Accuracy	± 1cn
	Horizontal FoV	360°
	Vertical FoV	30°(-15~+15°)	31°(-16~+15°)
	Scanning Point Frequency	Single Return:320,000pts/s Dual Return:640,000pts/s	Single Return:640,000pts/s Dual Return:1,280,000pts/s
	Return Mode	Single Return/Dual Return
GNSS&IMI	GNSS Signal Tracking	BDS,GPS,GLONASS,GALILEO
	Positioning Accuracy(post-processing)	Plane:1cm/Elevation:2cm
	Position Data Rate	≥5HZ
	Attitude Accuracy(post-processing)	Heading:0.05°/pitch/roll:0.01°
	Attitude Data Rate	≥200HZ
Aerial Camera (External)	Effective Pixels	26MP
	Sensor Dimension	23.5×15.7mm
	Image Resolution	6252×4168
	Image Width FoV	73°
	GSD	2.3cm@100m Flight Height
Slam Unit (Optional)	Weigh	1051g(Battery not Included)
	Dimension	L136W149 H108(mm)
	Scanning Mode	Fix Installed
	Battery Duration	4h for Single Battery
	Accuracy	Relative Accuracy 2cm/Absolute Accuracy 5cm

*The technical parameters and configuration of our products are subject to change without notice.

Notice:

① Weight includes LiDAR, GNSS,high-precision lMU, and aerial metric camera module②) Perpendicular to the flight direction, with the effective FoV angle of LiDAR③ Weight includes main body,SLAM dock, telescopic rod, and camera4) Tested at 25'c~ 27°C; charging time and power supply time will vary according to different conditions

Feature

High efficiency

Ultra-light aerial survey module, image acquisition not limited by LiDAR measurement range, flight height can be appropriately increased to improve the operation efficiency.

Not affected by light
LiDAR is not affected by the environment, has less side overlap, wider coverage of a single flight, and data can be easily collected even at night.

No signal limitation
Switch to SLAM mobile scanning mode, no limitation of GNSS signal, indoor and outdoor data integrated, collection makes the 3D data more complete

Real-time monitoring
Simultaneous acquisition of point cloud and orthophoto to achieve the real-time monitoring of flight trajectory, 3D point cloud, and images during the whole flight of the system.

Accessories

X10:
16 lines scanner *1
Camera *1
Skyport *1
Software dongle *1
Camera Adapter *1
GNSS receiver *1
X10+:
32 lines scanner *1
Camera *1
Skyport *1
Software dongle *1
Camera Adapter *1
GNSS receiver *1
SLAM handheld holder *1

Application

X10 / X10+ Real Time LiDAR Monitoring And Data Collection 0
Smart Topographic Emergency Smart Civil Defense Pipeline
Grid Mapping Rescue Mining Engineering Inspection

Case

EasyScan X10+ is applied to measure the underground Parking Lot
X10 / X10+ Real Time LiDAR Monitoring And Data Collection 1

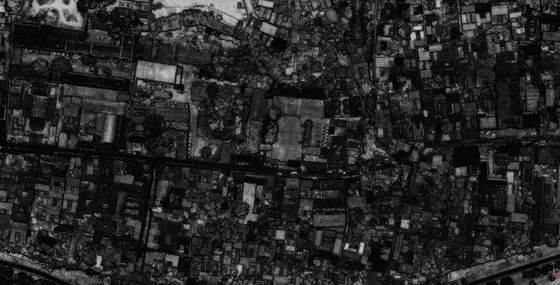

Sample Data Display
