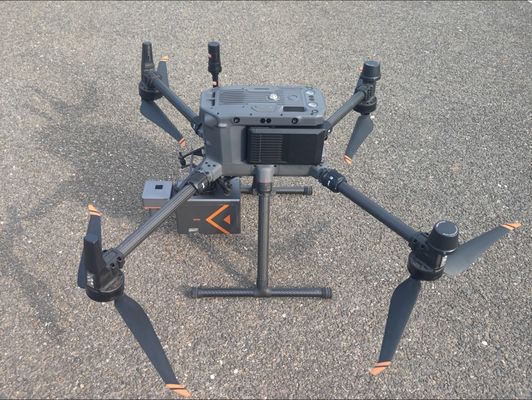

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350

MOQ:	1 set
Price:	contact us
Standard Packaging:	Tool Case
Delivery Period:	2 Weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC

Model Number

EliteScan W50

Brand:

EPiC LiDAR

Model:

EliteScan W50

Wavelength:

1550nm

Measurement Range:

500m@20%/ 1000m@80%Reflectivity

Flight Height(Operating):

350m@20%/ 450m@35%Reflectivity

Ranging Accuracy:

Angle Measurement Resolution:

0.0018°

Integrated

Aerial Camera:

External

Highlight:

M350 Airborne LiDAR

W50 Airborne LiDAR

M300 lidar system

Product Description

Product Introduction

W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU and aerial camera. It features a long scanning range, lightweight, strong penetration and higher working eﬃciency than ever, which can deal with the most challenging and complex scenarios.

Compact and powerful, the W50 integrates LiDAR, IMU, and a 26 MP camera, optimized for diverse aerial mapping tasks. Its robust design and precise scanning capabilities make it perfect for forestry, mining, and environmental surveys.

Products Specification

System Parameter	Weight	1.21kg(Camera not Included)
		1.40kg(Including 26 Megapixel Camera)
	Dimension	L156W90H117mm
	SystemAccuracy	Plane:5cm@150m Elevation:3cm@150m
	Average Power Consumption	45W(Typical Value)
	Power Supply	9~36V DC
	Quick-release Interface	DJI Skyport/EPiC Quick-release Interface customized interface
	Data Storage	High-speed USB Flash Drive (256GB)
	Operating Temperature	-20℃~50℃
	Storage Temperature	30℃~60℃
	Compatible Platform	DJI M300/M350/Multirotor /FixedWing
Laser Scanning Unit	Scanning Principle	Rotative Prism
	Laser Class	Class
	Wavelength	1550nm
	MeasurementRange	500m@20%/1000m@80%Reflectivity
	Flight Height(Operating)	350m@20%/450m@35%Reflectivity
	Ranging Accuracy	5mm
	FoV	90°
	Angle Measurement Resolution	0.0018°
	Scanning Speed	90~300Lines/sec
	Scanning Point Frequency	100~1000 kHz
	Echo Mode	57 Return
IMU	GNSS Signal Tracking	BDS,GPS,GLONASS,GALILEO
	Positioning Accuracy(Post-processing)	Plane: 1cm/Elevation:2cm
	Position Sampling Rate	5H7
	Attitude Accuracy(Post-processing)	Heading:0.04°,Pitch/Roll:0.008°
	Attitude Sampling Rate	500HZ
AERIAL CAMERA (EXTERNAL)	Effective Pixels	26MP	45MP
	Sensor Dimension	025y15.6mn	36x24mm
	Image Resolution	6240x4168	8192x5468
	ImageWidth FoV	73°	90°
	GSD	2.3cm@100m Flight Height	2.Icm@100m Flight Height

Features

Light Weight

Highly integrated with an overall weight 1.4kg only

Long Range

Typical flying height up to 400m.

Strong Penetration

With 7 echo returns, it can penetrate into vegetation to acquire ground points easily.

High Efficiency

Wider FoV and higher working efficiency.

Application

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350 0

Topographic Electricity Disaster Mining Nature Resource

Mapping Inspection Survey Mapping Investigation

Case

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350 1

Sample Data Display

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350 3
