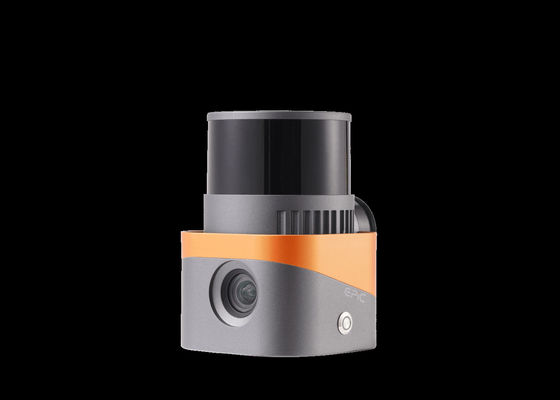

EasyScan W30 Airborne LiDAR For Enhanced Aerial Efficiency 905nm Wavelength
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EasyScan W30
Brand:
EPiC LiDAR
Model:
EasySan W30
Wavelength:
905nm
Measurmentt:
100m@15% / 180m@35% / 300m@90%
Ranging Accurency:
5mm
FoV:
Horizontal: 360°， Vertical： 40.0°（-20.8°~+19.5°）
Echo Mode:
Single Echo, Dual Echo, Triple Echo
IMU:
Integrated
Aerial Camera:
Built In
Suggest Flying Height:
120-150m
Highlight:
EasyScan W30 Airborne LiDAR
,905nm Airborne LiDAR
,150m als lidar
Product Description
EasyScan W30 Airborne LiDAR For Enhanced Aerial Efficiency 905nm Wavelength
Product Overview
The EasyScan W30 is a compact, lightweight LiDAR system designed for efficient aerial data capture. With tight integration of multiple sensors including laser scanner, GNSS, high-precision IMU, and professional metric camera, it delivers fully detailed 3D terrain data with simple operation.
Key Attributes
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EasyScan W30 |
| Wavelength | 905nm |
| Measurement | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 5mm |
| FoV | Horizontal: 360°, Vertical: 40.0° (-20.8°~+19.5°) |
| Echo Mode | Single Echo, Dual Echo, Triple Echo |
| IMU | Integrated |
| Aerial Camera | Built in |
| Suggested Flying Height | 120-150m |
Technical Specifications
| System Parameter | |
|---|---|
| Weight | 960g |
| Dimension | L150×W105×D121mm |
| Average Power Consumption | 30W |
| Power Supply | 12 ~ 30V DC |
| Device Interface | DJI Skyport/other interface available upon request |
| Data Storage | 256GB TF Card |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -30℃ ~ 60℃ |
| System Accuracy | 5cm |
| Operation Duration | 33min@M300 RTK UAV |
| Compatible Platform | DJI M300 RTK/Other UAV models |
| Laser Scanning Unit | |
| Laser Class | Class I |
| Wavelength | 905nm |
| Measurement Range | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 0.5cm |
| Horizontal FoV | 360° |
| Vertical FoV | 40.3° (-20.8° ~ +19.5°) |
| Scanning Point Frequency | Single Echo: 640000pts/s Dual Echo: 1280000pts/s Triple Echo: 1920000pts/s |
| Echo Mode | Single Echo/Dual Echo/Triple Echo |
| IMU | |
| GNSS Signal Tracking | BDS, GPS, GLONASS, GALILEO |
| Positioning Accuracy (Post-processing) | Plane: 1cm / Elevation: 2cm |
| Position Data Rate | 5HZ |
| Attitude Accuracy (Post-processing) | heading: 0.04° / pitch /roll: 0.008° |
| Attitude Data Rate | 200HZ |
| Aerial Camera (Built-in) | |
| Effective Pixels | 26MP |
| Sensor Dimension | 23.5×15.7mm |
| Image Resolution | 6252×4168 |
| Image Width FoV | 73° |
| GSD | 2.3cm@100m Flight Height |
Key Features
- Ultra long endurance: Compact design (960g) extends flight time while maintaining performance
- Ultra-high precision: Intelligent algorithm delivers professional-level measurement accuracy
- Extremely integrated: Seamless compatibility with DJI M300 RTK for plug-and-play operation
- Real-time monitoring: Displays flight trajectory, 3D point cloud, and aerial images in DJI's control unit
Applications
Applications include Smart Grid, Topographic Survey, Emergency Rescue, Smart Mining, Water Conservancy, Nature Resource, and Real 3D
Case Study: River Surveying Project in China
Sample Data Display
