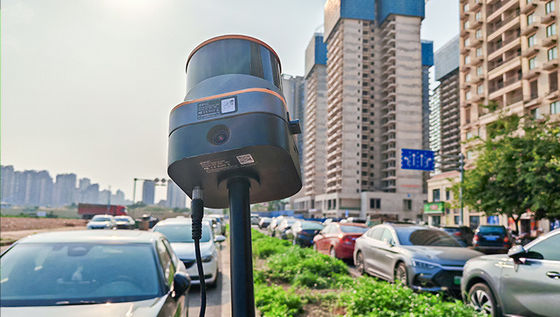

80m-120m Easyscan X10 Versatile 3D Laser Scanner For Volume Measurement
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
120m airborne lidar system
,80m airborne lidar system
,Easyscan X10 3D Laser Scanner
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | X10 / X10+ |
| Working Mode | Handheld SLAM and Aerial |
| Dataset | Contact us |
| Accuracy | 5cm |
| Flying Height | Suggest 80m-120m |
Easy Scan X10 / X10+ Versatile 3D laser Scanner Handheld SLAM and Airborne Drone LiDAR
Multiple views from one
The system integrates various sensors such as LiDAR, GNSS, high-precision IMU and aerial metric camera. With the distributed structure first introduced in the industry and special accessories, it can be disassembled into 4 different independent modes of fully aerial survey (LiDAR+camera), SLAM, airborne LiDAR, and airborne camera. One device, multi-purpose, can easily meet the requirements of different standards of data acquisition under different scenarios.
| System Parameter | |
|---|---|
| Weight | 280g |
| Dimension | L159*W118*H127(mm) |
| Average Power Consumption | 25W | 26W |
| Power Supply | 10~30V DC |
| Device Interface | DJI Skyport/other interface available upon request |
| Data Storage | USB-disk 256GB |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~60℃ |
| System Accuracy | 5cm |
| Compatible Platform | DJI M300 RTK/Other UAV models |
| Laser Unit | |
|---|---|
| Scanning Principle | Mechanic Rotation Mirror |
| Laser Class | ClassⅠ |
| Wavelength | 905nm |
| Measurement Range | 0.05m~120m@10%Reflectivity |
| Range Accuracy | ± 1cm |
| Horizontal FoV | 360° |
| Vertical FoV | 30°(-15~+15°) | 31°(-16~+15°) |
| Scanning Point Frequency | Single Return:320,000pts/s Dual Return:640,000pts/s | Single Return:640,000pts/s Dual Return:1,280,000pts/s |
| Return Mode | Single Return/Dual Return |
| GNSS & IMU | |
|---|---|
| GNSS Signal Tracking | BDS, GPS, GLONASS, GALILEO |
| Positioning Accuracy (post-processing) | Plane:1cm/Elevation:2cm |
| Position Data Rate | ≥5HZ |
| Attitude Accuracy (post-processing) | Heading:0.05°/pitch/roll:0.01° |
| Attitude Data Rate | ≥200HZ |
| Aerial Camera (External) | |
|---|---|
| Effective Pixels | 26MP |
| Sensor Dimension | 23.5×15.7mm |
| Image Resolution | 6252×4168 |
| Image Width FoV | 73° |
| GSD | 2.3cm@100m Flight Height |
| SLAM Unit (Optional) | |
|---|---|
| Weight | 1051g(Battery not Included) |
| Dimension | L136W149 H108(mm) |
| Scanning Mode | Fix Installed |
| Battery Duration | 4h for Single Battery |
| Accuracy | Relative Accuracy 2cm/Absolute Accuracy 5cm |
*The technical parameters and configuration of our products are subject to change without notice.
Notice:
① Weight includes LiDAR, GNSS, high-precision IMU, and aerial metric camera module
② Perpendicular to the flight direction, with the effective FoV angle of LiDAR
③ Weight includes main body, SLAM dock, telescopic rod, and camera
④ Tested at 25°C~27°C; charging time and power supply time will vary according to different conditions
- High efficiency: Ultra-light aerial survey module, image acquisition not limited by LiDAR measurement range, flight height can be appropriately increased to improve the operation efficiency.
- Not affected by light: LiDAR is not affected by the environment, has less side overlap, wider coverage of a single flight, and data can be easily collected even at night.
- No signal limitation: Switch to SLAM mobile scanning mode, no limitation of GNSS signal, indoor and outdoor data integrated, collection makes the 3D data more complete.
- Real-time monitoring: Simultaneous acquisition of point cloud and orthophoto to achieve the real-time monitoring of flight trajectory, 3D point cloud, and images during the whole flight of the system.
X10:
16 lines scanner *1
Camera *1
Skyport *1
Software dongle *1
Camera Adapter *1
GNSS receiver *1
X10+:
32 lines scanner *1
Camera *1
Skyport *1
Software dongle *1
Camera Adapter *1
GNSS receiver *1
SLAM handheld holder *1
EasyScan X10+ is applied to measure the underground Parking Lot
