High Precision 3D Terrestrial Laser Scanner Long Range 1000m

Products

Compatible UAV Platform

sales03@epiclidar.cn

+8613545303229

Contact Now

High Precision 3D Terrestrial Laser Scanner Long Range 1000m

MOQ:	1 set
Price:	Contact us
Standard Packaging:	Tool Case
Delivery Period:	2 weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 Sets/ Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC, ISO9001...

Model Number

EliteScan T1000

Measurement Range:

0.5~100m@20%

Horizontal 360°， Vertical 268°

Accuracy:

5mm@100m

Weight:

3.7kg

Point Cloud Density:

10m: >25,000 Pts/㎡

HDR Imaging:

Ranging Accuracy:

3mm@100m

Laser Class:

Class Ⅰ

Wavelength:

1550nm

Highlight:

Terrestrial Laser Scanner High Precision

Terrestrial Laser Scanner 1000m

Long Range terrestrial lidar scanner

Product Description

Product Introduction

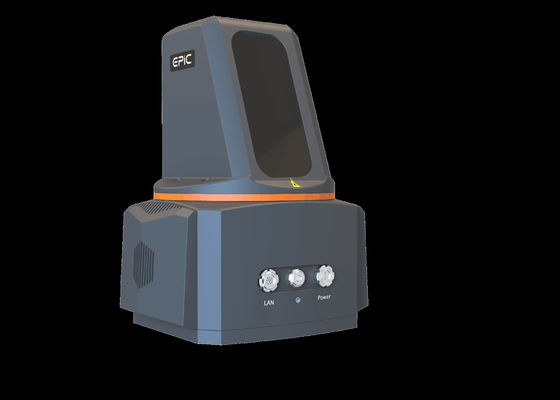

Elite Scan T1000

T1000 is a fully self-developed high-precision and long range of terrestrial laser scanner. The system is designed to be most compact and portable. It can capture 3D topographic data in a wider land scape quickly, enabling to acquire true color of 3D point cloud in most demanding scenarios.

Product Specification

System Parameter	Weight	7kg
	Main Dimensions	L210W163H270mm
	External Power Supply	Input Voltage 18~33V DC
	Power Consumption	Typical 50W
	Data Communication Interface	GigE
	Humidity	80%, Non-condensing
	OperatingTemperature	-20C~+50℃
	Storage Temperature	-30℃~+60℃
	Dual-axis Tilt Sensor Range	±5°
Laser Scanning Unit	Ranging Method	Pulse Ranging
	Laser Class	Class I
	Laser Pulse Repetition Rate	00~2000 kHz
	Max.Measuring Range	1400m
	Min. Measuring Range	1.5m
	Ranging Precision	3mm@100m
	Accuracy	5mm@100m
	Vertical FoV	100°(-40°~+60°)
	Horizontal FoV	360°
	Scanning Speed	Vertical:3-150 lines/sec
	Scanning Speed	Horizontal:max.18°/sec
	Angle Measurement Resolution	0.001°

Accessories

Features:

Long Range

Excellent ranging ability, max. measurement range up to 1400m.

High Accuracy

Millimeter accuracy 5mm@100m, with more precision data details.

IIPR

Developed with independent intellectual property rights, upgrade guaranteed

Easy Extension

Supports customized integration and SDK.

Application:

High Precision 3D Terrestrial Laser Scanner Long Range 1000m 0

Polar Scientific Mine Monitoring BIM Industry Power Line Special

Research Metrology Inspection Structure

Case

EliteScan T1000 was Applied to Mine Monitoring in China

High Precision 3D Terrestrial Laser Scanner Long Range 1000m 1

Sample Data Display

High Precision 3D Terrestrial Laser Scanner Long Range 1000m 2
