Class I 3D Terrestrial Laser Scanner For Short Range High Precision

Products

Compatible UAV Platform

sales03@epiclidar.cn

+8613545303229

Contact Now

Class I 3D Terrestrial Laser Scanner For Short Range High Precision

MOQ:	1 set
Price:	Contact us
Standard Packaging:	Tool Case
Delivery Period:	2 weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 Sets/ Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC, ISO9001...

Model Number

EasyScan T05

Measurement Range:

0.5m～100m@20%

Horizontal 360°， Vertical 268°

Accuracy:

1cm@100m

Weight:

3.7kg

Point Cloud Density:

10m: >25,000 Pts/㎡

HDR Imaging:

Laser Class:

Class Ⅰ

Wavelength:

905nm

Highlight:

Class I Terrestrial Laser Scanner

Short Range Terrestrial Laser Scanner

High Precision tls laser scanner

Product Description

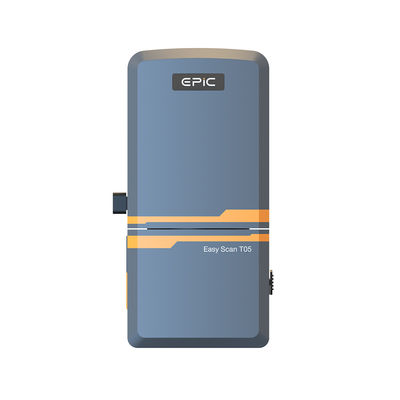

Terrestrial 3D Laser Scanner EPiC LiDAR EasyScan T05

Product Introduction

The Easyscan T05, developed by EPiC Lidar, is an advanced terrestrial laser scanner designed for high-precision data capture. It features several enhancements that improve both usability and performance. With its lightweight, compact design, the T05 is highly portable and suitable for a variety of surveying tasks. It includes integrated sensors that allow for fast and accurate point cloud acquisition in true color, making it versatile across different environments. The scanner also boasts a user-friendly interface, simplifying operation and efficiently managing scanning tasks. This model is ideal for professionals in forestry, construction, and urban planning who need accurate and dependable 3D data.

Product Specification

System Parameter	Weight	3.7kg
	Dimension	LI25WI24H265mm
	Average Power Consumption	20W
	Battery Duration	2hr For single Battery
	FoV	Horizontal 360°,Vertical 268°
	Data Storage	U-Disk 64GB
	Operating Temperature	-10C~50C
	Storage Temperature	-20C~60℃
	Aluminum Alloy tripod	Weight:1.92kg Safe Load:8kg max.Height:1.49m
Laser Scanning Unit	Scan Principle	ToF
	Laser Class	Class I
	Wavelength	905nm
	Measurement Range	0.5m～100m@20%
	Scanning Point Frequency	320,000pts/s
Operation Performance	Precision	1cm@100m
	Ranging Accuracy	5mm@10m,8mm@30m,Icm@100m
	Minimum Data Collection Time	60s
	Point Density	0m:>25,000pts/m²
		30m:>3,200pts/m²
		00m:>300pts/m²
Embedded Camera	FoV	360°
Embedded Camera	mage Resolution	66MP

Features:

High Integration

With three embedded high-definition cameras and one smart battery.

High Accuracy

5mm point cloud accuracy and pixel-level colorization.

Intelligent Workflow

One-click to collect data, it can calculate and splice data automatically.

Application:

Class I 3D Terrestrial Laser Scanner For Short Range High Precision 0

Infrastructure Digital Underground BIM Mine Tank

Management Plant Monitoring Calibration

Accessories

Case

EasyScan T05 Applied to BIM in Japan

Class I 3D Terrestrial Laser Scanner For Short Range High Precision 1

Sample Data Display

Class I 3D Terrestrial Laser Scanner For Short Range High Precision 2
