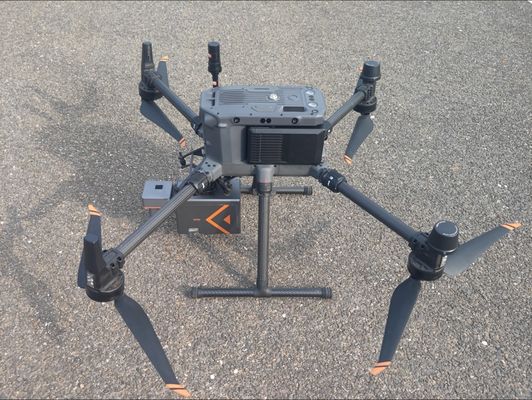

W50 LiDAR System Compact Powerful Mapping Tool Compatible To DJI M300 M350
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
M350 Airborne LiDAR
,W50 Airborne LiDAR
,M300 lidar system
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EliteScan W50 |
| Wavelength | 1550nm |
| Measurement Range | 500m@20%/ 1000m@80%Reflectivity |
| Flight Height(Operating) | 350m@20%/ 450m@35%Reflectivity |
| Ranging Accuracy | 5mm |
| Angle Measurement Resolution | 0.0018° |
| IMU | Integrated |
| Aerial Camera | External |
W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU and aerial camera. It features a long scanning range, lightweight, strong penetration and higher working efficiency than ever, which can deal with the most challenging and complex scenarios.
Compact and powerful, the W50 integrates LiDAR, IMU, and a 26 MP camera, optimized for diverse aerial mapping tasks. Its robust design and precise scanning capabilities make it perfect for forestry, mining, and environmental surveys.
| System Parameter | |
|---|---|
| Weight | 1.21kg (Camera not Included) 1.40kg (Including 26 Megapixel Camera) |
| Dimension | L156*W90*H117mm |
| System Accuracy | Plane:5cm@150m Elevation:3cm@150m |
| Average Power Consumption | 45W (Typical Value) |
| Power Supply | 9~36V DC |
| Quick-release Interface | DJI Skyport/EPiC Quick-release Interface customized interface |
| Data Storage | High-speed USB Flash Drive (256GB) |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | 30℃~60℃ |
| Compatible Platform | DJI M300/M350/Multirotor /FixedWing |
| Laser Scanning Unit | |
|---|---|
| Scanning Principle | Rotative Prism |
| Laser Class | Class |
| Wavelength | 1550nm |
| Measurement Range | 500m@20%/1000m@80%Reflectivity |
| Flight Height(Operating) | 350m@20%/450m@35%Reflectivity |
| Ranging Accuracy | 5mm |
| FoV | 90° |
| Angle Measurement Resolution | 0.0018° |
| Scanning Speed | 90~300Lines/sec |
| Scanning Point Frequency | 100~1000 kHz |
| Echo Mode | 57 Return |
| IMU | |
|---|---|
| GNSS Signal Tracking | BDS,GPS,GLONASS,GALILEO |
| Positioning Accuracy (Post-processing) | Plane: 1cm/Elevation:2cm |
| Position Sampling Rate | 5H7 |
| Attitude Accuracy (Post-processing) | Heading:0.04°,Pitch/Roll:0.008° |
| Attitude Sampling Rate | 500HZ |
| AERIAL CAMERA (EXTERNAL) | |
|---|---|
| Effective Pixels | 26MP | 45MP |
| Sensor Dimension | 025y15.6mn | 36x24mm |
| Image Resolution | 6240x4168 | 8192x5468 |
| ImageWidth FoV | 73° | 90° |
| GSD | 2.3cm@100m Flight Height | 2.Icm@100m Flight Height |
Highly integrated with an overall weight 1.4kg only
Typical flying height up to 400m
With 7 echo returns, it can penetrate into vegetation to acquire ground points easily
Wider FoV and higher working efficiency
