12-30V DC Easyscan W30 Seamless Integration For Aerial Surveys
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EasyScan W30
Brand:
EPiC LiDAR
Model:
EasySan W30
Wavelength:
905nm
Measurmentt:
100m@15% / 180m@35% / 300m@90%
Ranging Accurency:
5mm
FoV:
Horizontal: 360°， Vertical： 40.0°（-20.8°~+19.5°）
Echo Mode:
Single Echo, Dual Echo, Triple Echo
IMU:
Integrated
Aerial Camera:
Built In
Suggest Flying Height:
120-150m
Highlight:
30V Seamless Integration
,12V Seamless Integration
,Aerial Surveys seamless data integration
Product Description
12-30V DC Easyscan W30 Seamless Integration For Aerial Surveys
Product Overview
The Easyscan W30 is a seamlessly integrated aerial survey system combining multiple sensors including laser scanning, GNSS, high-precision IMU, and professional metric camera. Designed for compatibility with DJI M300 RTK, it delivers detailed 3D terrain data with simple operation.
Key Specifications
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EasySan W30 |
| Wavelength | 905nm |
| Measurement Range | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 5mm |
| Field of View | Horizontal: 360°, Vertical: 40.0° (-20.8°~+19.5°) |
| Echo Mode | Single Echo, Dual Echo, Triple Echo |
| IMU | Integrated |
| Aerial Camera | Built-in |
| Suggested Flying Height | 120-150m |
Detailed Specifications
| System Parameters | |
|---|---|
| Weight | 960g |
| Dimensions | L150×W105×D121mm |
| Average Power Consumption | 30W |
| Power Supply | 12 ~ 30V DC |
| Device Interface | DJI Skyport/other interface available upon request |
| Data Storage | 256GB TF Card |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -30℃ ~ 60℃ |
| System Accuracy | 5cm |
| Operation Duration | 33min@M300 RTK UAV |
| Compatible Platform | DJI M300 RTK/Other UAV models |
| Laser Scanning Unit | |
| Laser Class | Class I |
| Wavelength | 905nm |
| Measurement Range | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 0.5cm |
| Horizontal FoV | 360° |
| Vertical FoV | 40.3° (-20.8° ~ +19.5°) |
| Scanning Point Frequency | Single Echo: 640000pts/s, Dual Echo: 1280000pts/s, Triple Echo: 1920000pts/s |
| Echo Mode | Single Echo/Dual Echo/Triple Echo |
| IMU | |
| GNSS Signal Tracking | BDS, GPS, GLONASS, GALILEO |
| Positioning Accuracy (Post-processing) | Plane: 1cm / Elevation: 2cm |
| Position Data Rate | 5Hz |
| Attitude Accuracy (Post-processing) | Heading: 0.04° / Pitch/Roll: 0.008° |
| Attitude Data Rate | 200Hz |
| Aerial Camera (Built-in) | |
| Effective Pixels | 26MP |
| Sensor Dimension | 23.5×15.7mm |
| Image Resolution | 6252×4168 |
| Image Width FoV | 73° |
| GSD | 2.3cm@100m Flight Height |
Key Features
- Ultra Long Endurance: Compact design (960g) extends flight time while maintaining performance
- Ultra-High Precision: Intelligent algorithms deliver professional-level measurement accuracy
- Seamless Integration: Plug-and-play compatibility with DJI M300 RTK, controlled through DJI's integrated apps

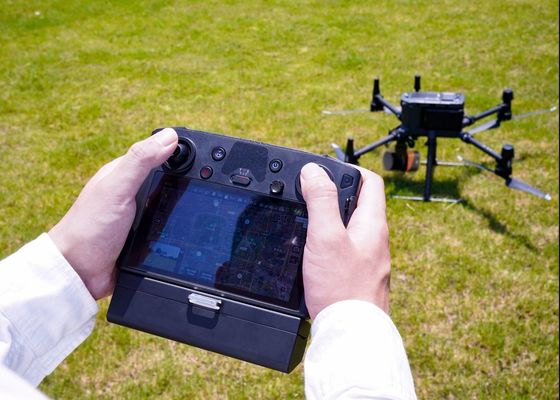

- Real-Time Monitoring: View flight trajectory, 3D point cloud, and aerial images in DJI's control unit during operation
Applications
Smart Grid
Topographic Survey
Emergency Rescue
Smart Mining
Water Conservancy & Hydrology
Natural Resource Management
Real 3D Mapping
Case Study: River Surveying Project in China
Sample Data Display
