3 Embedded Cameras Terrestrial Lidar Scanner 3D Scanning Class I

MOQ:	1 set
Price:	Contact us
Standard Packaging:	Tool Case
Delivery Period:	2 weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 Sets/ Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC, ISO9001...

Model Number

EasyScan T05

Measurement Range:

0.5m～100m@20%

Horizontal 360°， Vertical 268°

Precision:

5mm@10m, 8mm@30m, 1cm@100m

Weight905nm:

3.7kg

Point Cloud Density:

10m: >25,000 Pts/㎡

Camera:

3 Embedded Cameras

Highlight:

3 Embedded Cameras lidar scanner 3d scanning

Terrestrial lidar scanner 3d scanning

Class I scanner 3d lidar

Product Description

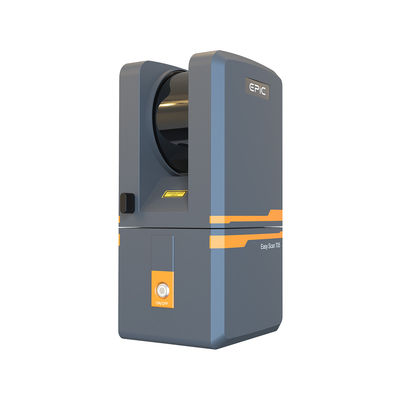

Terrestrial 3D Laser Scanner EPiC LiDAR EasyScan T05

Product Introduction

Lightweight & Exquisite | Easy scanning

The overall design of the system is extremely lightweight, and a variety of sensors are highly integrated, which can ensure the rapid and effective acquisition of high-precision true color point clouds under different application scenarios, and lead a new development direction of the terrestrial 3D laser scanner.

Product Specification

System Parameter	Weight	3.7kg
	Dimension	LI25WI24H265mm
	Average Power Consumption	20W
	Battery Duration	2hr For single Battery
	FoV	Horizontal 360°,Vertical 268°
	Data Storage	U-Disk 64GB
	Operating Temperature	-10C~50C
	Storage Temperature	-20C~60℃
	Aluminum Alloy tripod	Weight:1.92kg Safe Load:8kg max.Height:1.49m
Laser Scanning Unit	Scan Principle	ToF
	Laser Class	Class I
	Wavelength	905nm
	Measurement Range	0.5m～100m@20%
	Scanning Point Frequency	320,000pts/s
Operation Performance	Precision	1cm@100m
	Ranging Accuracy	5mm@10m,8mm@30m,Icm@100m
	Minimum Data Collection Time	60s
	Point Density	0m:>25,000pts/m²
		30m:>3,200pts/m²
		00m:>300pts/m²
Embedded Camera	FoV	360°
Embedded Camera	mage Resolution	66MP

Features:

High Integration

With three embedded high-definition cameras and one smart battery.

High Accuracy

5mm point cloud accuracy and pixel-level colorization.

Intelligent Workflow

One-click to collect data, it can calculate and splice data automatically.

Application:

3 Embedded Cameras Terrestrial Lidar Scanner 3D Scanning Class I 0

Infrastructure Digital Underground BIM Mine Tank

Management Plant Monitoring Calibration

Accessories

Scanner
Smart Battery *2
64G USB-Disk *1
Software Dangle *1
Battery Charger *1 (Charger Kit *1+ Charger Adopter *1)
User Manual *1
Warranty Card *1
Alcohol Wipes *4
Tripod for the scanner *1

3 Embedded Cameras Terrestrial Lidar Scanner 3D Scanning Class I 1

Case

EasyScan T05 Applied in City Building BIM

3 Embedded Cameras Terrestrial Lidar Scanner 3D Scanning Class I 2

Sample Data Display
