Laser Terrestrial Lidar Scanner For Final Acceptance Inspection Of Residential Construction
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC, ISO9001...
Model Number
EasyScan T05
Measurement Range:
0.5m～100m@20%
FoV:
Horizontal 360°， Vertical 268°
Precision:
5mm@10m, 8mm@30m, 1cm@100m
Weight905nm:
3.7kg
Point Cloud Density:
10m: >25,000 Pts/㎡
Camera:
3 Embedded Cameras
Highlight:
Laser terrestrial lidar scanner
,20W terrestrial lidar scanner
,LiDAR terrestrial laser scanner
Product Description
Laser Terrestrial Lidar Scanner For Final Acceptance Inspection Of Residential Construction
Product Specifications
| Attribute | Value |
|---|---|
| Measurement Range | 0.5m～100m@20% |
| FoV | Horizontal 360°, Vertical 268° |
| Precision | 5mm@10m, 8mm@30m, 1cm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| Camera | 3 Embedded Cameras |
Terrestrial 3D Laser Scanner EPiC LiDAR EasyScan T05
Lightweight & Exquisite | Easy scanning
The overall design of the system is extremely lightweight, and a variety of sensors are highly integrated, which can ensure the rapid and effective acquisition of high-precision true color point clouds under different application scenarios, and lead a new development direction of the terrestrial 3D laser scanner.
Technical Specifications
| System Parameter | Value |
|---|---|
| Weight | 3.7kg |
| Dimension | LI25*WI24*H265mm |
| Average Power Consumption | 20W |
| Battery Duration | 2hr For single Battery |
| FoV | Horizontal 360°,Vertical 268° |
| Data Storage | U-Disk 64GB |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Aluminum Alloy tripod | Weight:1.92kg Safe Load:8kg max.Height:1.49m |
Key Features
- High Integration - With three embedded high-definition cameras and one smart battery
- High Accuracy - 5mm point cloud accuracy and pixel-level colorization
- Intelligent Workflow - One-click to collect data, it can calculate and splice data automatically
Applications
Included Accessories
- 1. Scanner
- 2. Smart Battery *2
- 3. 64G USB-Disk *1
- 4. Software Dangle *1
- 5. Battery Charger *1 (Charger Kit *1+ Charger Adopter *1)
- 6. User Manual *1
- 7. Warranty Card *1
- 8. Alcohol Wipes *4
- 9. Tripod for the scanner *1
Product Images

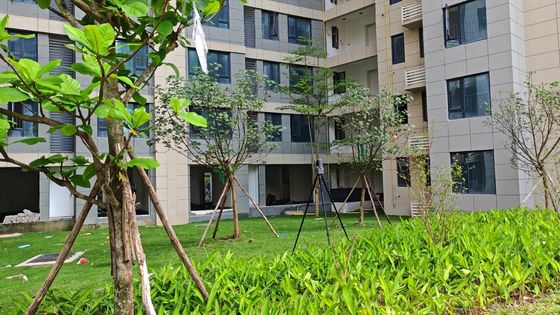

Case Study: EasyScan T05 Applied in City Building BIM
Sample Data Display
