Fixed 3D LiDAR Scanner Terrestrial EasyScan T05 3 Embedded Cameras

MOQ:	1 set
Price:	Contact us
Standard Packaging:	Tool Case
Delivery Period:	2 weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 Sets/ Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC, ISO9001...

Model Number

EasyScan T05

Measurement Range:

0.5m～100m@20%

Horizontal 360°， Vertical 268°

Precision:

5mm@10m, 8mm@30m, 1cm@100m

Weight905nm:

3.7kg

Point Cloud Density:

10m: >25,000 Pts/㎡

Camera:

3 Embedded Cameras

Highlight:

Fixed 3d lidar scanner

3d lidar scanner Terrestrial

Terrestrial lidar scanner device

Product Description

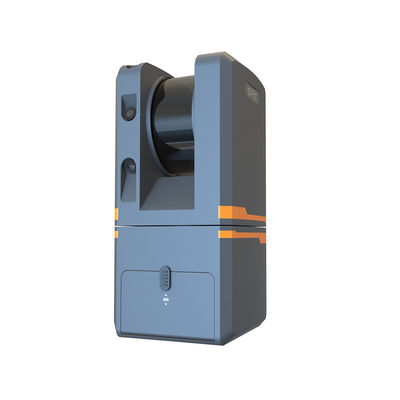

Terrestrial 3D Laser Scanner EPiC LiDAR EasyScan T05

Product Introduction

The Easyscan T05 model is a advanced terrestrial laser scanner developed by EPiC Lidar. It is designed for high-precision data collection and offers several features that enhance its usability and performance. The T05 is lightweight and compact, making it easily portable for various surveying applications. It is equipped with integrated sensors that ensure rapid and accurate acquisition of point clouds in true color, suitable for a wide range of environments.

Additionally, the Easyscan T05 is user-friendly, with a streamlined interface that facilitates easy operation, allowing users to efficiently manage scanning tasks. This model is ideal for professionals in fields such as forestry, construction, and urban planning who require reliable and precise 3D data.

Product Specification

System Parameter	Weight	3.7kg
	Dimension	LI25WI24H265mm
	Average Power Consumption	20W
	Battery Duration	2hr For single Battery
	FoV	Horizontal 360°,Vertical 268°
	Data Storage	U-Disk 64GB
	Operating Temperature	-10C~50C
	Storage Temperature	-20C~60℃
	Aluminum Alloy tripod	Weight:1.92kg Safe Load:8kg max.Height:1.49m
Laser Scanning Unit	Scan Principle	ToF
	Laser Class	Class I
	Wavelength	905nm
	Measurement Range	0.5m～100m@20%
	Scanning Point Frequency	320,000pts/s
Operation Performance	Precision	1cm@100m
	Ranging Accuracy	5mm@10m,8mm@30m,Icm@100m
	Minimum Data Collection Time	60s
	Point Density	0m:>25,000pts/m²
		30m:>3,200pts/m²
		00m:>300pts/m²
Embedded Camera	FoV	360°
Embedded Camera	mage Resolution	66MP

Features:

High Integration

With three embedded high-definition cameras and one smart battery.

High Accuracy

5mm point cloud accuracy and pixel-level colorization.

Intelligent Workflow

One-click to collect data, it can calculate and splice data automatically.

Application:

Fixed 3D LiDAR Scanner Terrestrial EasyScan T05 3 Embedded Cameras 0

Infrastructure Digital Underground BIM Mine Tank

Management Plant Monitoring Calibration

Accessories

Scanner
Smart Battery *2
64G USB-Disk *1
Software Dangle *1
Battery Charger *1 (Charger Kit *1+ Charger Adopter *1)
User Manual *1
Warranty Card *1
Alcohol Wipes *4
Tripod for the scanner *1

Fixed 3D LiDAR Scanner Terrestrial EasyScan T05 3 Embedded Cameras 1

Case

EasyScan T05 Applied in City Building BIM

Fixed 3D LiDAR Scanner Terrestrial EasyScan T05 3 Embedded Cameras 2

Sample Data Display
