3D Tls Terrestrial Laser Scanner Easy Scan T05 For Ancient Building Modeling
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC, ISO9001...
Model Number
EasyScan T05
Measurement Range:
0.5m～100m@20%
FoV:
Horizontal 360°， Vertical 268°
Precision:
5mm@10m, 8mm@30m, 1cm@100m
Weight905nm:
3.7kg
Point Cloud Density:
10m: >25,000 Pts/㎡
Camera:
3 Embedded Cameras
Highlight:
3D tls terrestrial laser scanner
,tls terrestrial laser scanner Easy Scan
,905nm tls laser scanner
Product Description
3D TLS Terrestrial Laser Scanner Easy Scan T05 For Ancient Building Modeling
Product Specifications
| Attribute | Value |
|---|---|
| Measurement Range | 0.5m～100m@20% |
| FoV | Horizontal 360°, Vertical 268° |
| Precision | 5mm@10m, 8mm@30m, 1cm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| Camera | 3 Embedded Cameras |
Product Introduction
Lightweight & Exquisite | Easy scanning
The overall design of the system is extremely lightweight, and a variety of sensors are highly integrated, which can ensure the rapid and effective acquisition of high-precision true color point clouds under different application scenarios, and lead a new development direction of the terrestrial 3D laser scanner.
Detailed Specifications
| System Parameter | Value |
|---|---|
| Weight | 3.7kg |
| Dimension | LI25*WI24*H265mm |
| Average Power Consumption | 20W |
| Battery Duration | 2hr For single Battery |
| FoV | Horizontal 360°,Vertical 268° |
| Data Storage | U-Disk 64GB |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Aluminum Alloy tripod | Weight:1.92kg Safe Load:8kg max.Height:1.49m |
Laser Scanning Unit
| Scan Principle | ToF |
| Laser Class | Class I |
| Wavelength | 905nm |
| Measurement Range | 0.5m～100m@20% |
| Scanning Point Frequency | 320,000pts/s |
Operation Performance
| Precision | 1cm@100m |
| Ranging Accuracy | 5mm@10m,8mm@30m,1cm@100m |
| Minimum Data Collection Time | 60s |
| Point Density | 0m:>25,000pts/m² 30m:>3,200pts/m² 100m:>300pts/m² |
Embedded Camera
| FoV | 360° |
| Image Resolution | 66MP |
Key Features
- High Integration: With three embedded high-definition cameras and one smart battery.
- High Accuracy: 5mm point cloud accuracy and pixel-level colorization.
- Intelligent Workflow: One-click to collect data, it can calculate and splice data automatically.
Applications
Included Accessories
- Scanner
- Smart Battery ×2
- 64G USB-Disk ×1
- Software Dangle ×1
- Battery Charger ×1 (Charger Kit ×1 + Charger Adopter ×1)
- User Manual ×1
- Warranty Card ×1
- Alcohol Wipes ×4
- Tripod for the scanner ×1
Product Images

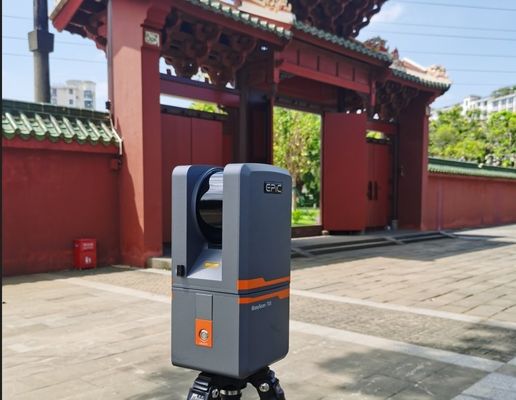

Case Study: Ancient Building Modeling
Sample Data Display
