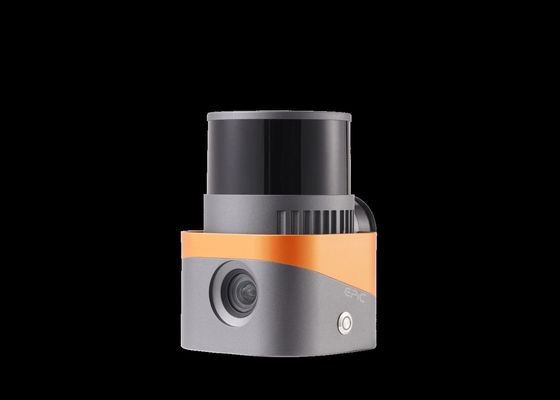

UAV LiDAR System For Real 3D And Smart Mining Easy Scan W30
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
905nm lidar system
,lidar system UAV
,Easy Scan uav lidar system
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EasySan W30 |
| Wavelength | 905nm |
| Measurement | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 5mm |
| FoV | Horizontal: 360°, Vertical: 40.0° (-20.8°~+19.5°) |
| Echo Mode | Single Echo, Dual Echo, Triple Echo |
| IMU | Integrated |
| Aerial Camera | Built in |
| Suggest Flying Height | 120-150m |
Aerial 3D Laser Scanning System For Real 3D And Smart Mining
With the design concept of tight integration, the system highly integrates multiple sensors such as laser sensor, GNSS, high-precision IMU, and professional metric camera. It can be seamlessly compatible with DJI M300 RTK with an integrated control unit from DJI, providing customers with a simple aerial survey experience and fully detailed 3D terrain data.
| Weight | 960g |
| Dimension | L150×W105×D121mm |
| Average Power Consumption | 30W |
| Power Supply | 12 ~ 30V DC |
| Device Interface | DJI Skyport/other interface available upon request |
| Data Storage | 256GB TF Card |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -30℃ ~ 60℃ |
| System Accuracy | 5cm |
| Operation Duration | 33min@M300 RTK UAV |
| Compatible Platform | DJI M300 RTK/Other UAV models |
| Laser Class | Class I |
| Wavelength | 905nm |
| Measurement Range | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 0.5cm |
| Horizontal FoV | 360° |
| Vertical FoV | 40.3° (-20.8° ~ +19.5°) |
| Scanning Point Frequency | Single Echo: 640000pts/s, Dual Echo: 1280000pts/s, Triple Echo: 1920000pts/s |
| Echo Mode | Single Echo/Dual Echo/Triple Echo |
| GNSS Signal Tracking | BDS, GPS, GLONASS, GALILEO |
| Positioning Accuracy (Post-processing) | Plane: 1cm / Elevation: 2cm |
| Position Data Rate | 5HZ |
| Attitude Accuracy (Post-processing) | heading: 0.04° / pitch /roll: 0.008° |
| Attitude Data Rate | 200HZ |
| Effective Pixels | 26MP |
| Sensor Dimension | 23.5×15.7mm |
| Image Resolution | 6252×4168 |
| Image Width FoV | 73° |
| GSD | 2.3cm@100m Flight Height |
-
Ultra Long Endurance
The innovative design makes the scanner compact (960g) to effectively extend flight time.
-
Ultra-High Precision
Unique intelligent algorithm delivers professional-level measurement accuracy in 3D point clouds.
-
Extremely Integrated
Seamlessly compatible with DJI M300 RTK, featuring plug-and-play operation with integrated Apps for control and monitoring.
-
Real-Time Monitoring
Displays flight trajectory, 3D point cloud, and aerial images in DJI's control unit for in-air evaluation.
EasyScan W30 was applied to measure the River Survey in China
