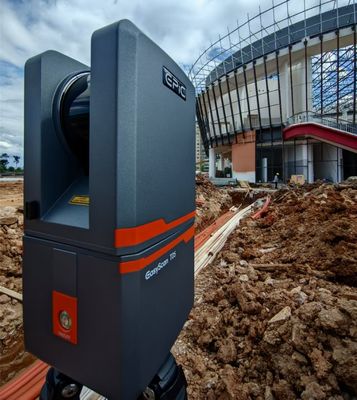

Terrestrial 3D Laser Scanner LiDAR EasyScan T05 Construction 2D 3D Measurement
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC, ISO9001...
Model Number
EasyScan T05
Measurement Range:
0.5m～100m@20%
FoV:
Horizontal 360°， Vertical 268°
Precision:
5mm@10m, 8mm@30m, 1cm@100m
Weight905nm:
3.7kg
Point Cloud Density:
10m: >25,000 Pts/㎡
Camera:
3 Embedded Cameras
Highlight:
Terrestrial 3D Laser Scanner
,3D Laser Scanner LiDAR
,Construction terrestrial 3d laser scanner
Product Description
Terrestrial 3D Laser Scanner LiDAR EasyScan T05 Construction 2D 3D Measurement
| Attribute | Value |
|---|---|
| Measurement Range | 0.5m～100m@20% |
| FoV | Horizontal 360°, Vertical 268° |
| Precision | 5mm@10m, 8mm@30m, 1cm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| Camera | 3 Embedded Cameras |
Product Introduction
The Terrestrial 3D Laser Scanner EPiC LiDAR EasyScan T05 is designed for surveying irregular steel structure buildings. Its lightweight and compact design, combined with highly integrated sensors, enables rapid acquisition of high-precision true color point clouds across various application scenarios.
Product Specifications
| System Parameter | Value |
|---|---|
| Weight | 3.7kg |
| Dimension | L125×W124×H265mm |
| Average Power Consumption | 20W |
| Battery Duration | 2hr for single battery |
| FoV | Horizontal 360°, Vertical 268° |
| Data Storage | U-Disk 64GB |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Aluminum Alloy Tripod | Weight: 1.92kg, Safe Load: 8kg max, Height: 1.49m |
Key Features
- High Integration: Three embedded high-definition cameras and one smart battery
- High Accuracy: 5mm point cloud accuracy with pixel-level colorization
- Intelligent Workflow: One-click data collection with automatic calculation and splicing
Applications
Included Accessories
1. Scanner
2. Smart Battery ×2
3. 64G USB-Disk ×1
4. Software Dongle ×1
5. Battery Charger ×1 (Charger Kit ×1 + Charger Adopter ×1)
6. User Manual ×1
7. Warranty Card ×1
8. Alcohol Wipes ×4
9. Tripod for the scanner ×1
Product Images
Case Study: Surveying Irregular Steel Structure Buildings
Sample Data Display
Contact us for sample point cloud data and 3D models demonstrating the scanner's capabilities.
