905nm Easyscan W30 3D Scanning With Long Endurance Capabilities
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
905nm EasyScan
,EasyScan 3D Scanning
,120m easyscaner
| Brand | EPiC LiDAR |
|---|---|
| Model | EasySan W30 |
| Wavelength | 905nm |
| Measurement | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 5mm |
| FoV | Horizontal: 360°, Vertical: 40.0°（-20.8°~+19.5°） |
| Echo Mode | Single Echo, Dual Echo, Triple Echo |
| IMU | Integrated |
| Aerial Camera | Built in |
| Suggest Flying Height | 120-150m |
Easyscan W30 Seamless Integration for Aerial Surveys

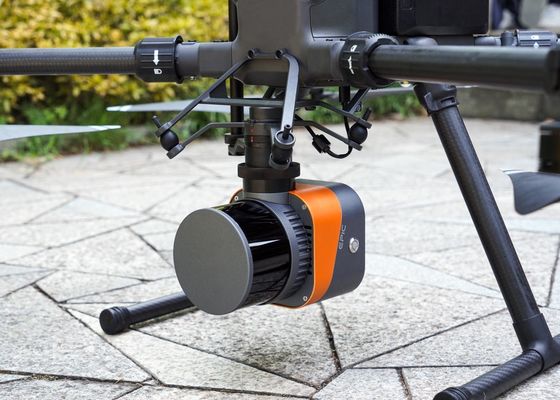

With the design concept of tight integration, the system highly integrates multiple sensors such as laser sensor, GNSS, high-precision IMU, professional metric camera, etc., which can be seamlessly compatible with DJI M300 RTK with an integrated control unit from DJI. The system brings customers a simple aerial survey experience with fully detailed 3D terrain data.
With a power consumption of just 30W, the W30 ensures prolonged flight times. Its unique algorithms deliver professional measurement accuracy, making it suitable for various applications, from mapping to infrastructure monitoring.
| SYSTEM PARAMETER |
Weight: 960g Dimension: L150×W105×D121mm Average Power Consumption: 30W Power Supply: 12 ~ 30V DC Device Interface: DJI Skyport/other interface available upon request Data Storage: 256GB TF Card Operating Temperature: -10℃ ~ 50℃ Storage Temperature: -30℃ ~ 60℃ System Accuracy: 5cm Operation Duration: 33min@M300 RTK UAV Compatible Platform: DJI M300 RTK/Other UAV models |
|---|---|
| LASER SCANNING UNIT |
Laser Class: Class I Wavelength: 905nm Measurement Range: 100m@15% / 180m@35% / 300m@90% Ranging Accuracy: 0.5cm Horizontal FoV: 360° Vertical FoV: 40.3°( -20.8° ~ +19.5°) Scanning Point Frequency: Single Echo: 640000pts/s, Dual Echo: 1280000pts/s, Triple Echo: 1920000pts/s Echo Mode: Single Echo/Dual Echo/Triple Echo |
| IMU |
GNSS Signal Tracking: BDS,GPS,GLONASS,GALILEO Positioning Accuracy(Post-processing): Plane:1cm / Elevation:2cm Position Data Rate: 5HZ Attitude Accuracy(Post-processing): heading: 0.04° / pitch /roll: 0.008 ° Attitude Data Rate: 200HZ |
| AERIAL CAMERA (BUILT-IN) |
Effective Pixels: 26MP Sensor Dimension: 23.5×15.7mm Image Resolution: 6252×4168 Image Width FoV: 73° GSD: 2.3cm@100m Flight Height |
-
Ultra long endurance
The innovative design of the system makes the whole scanner smaller in size and only 960g in weight, which can effectively extend the flight time in the air.
-
Ultra-high precision
With the unique intelligent algorithm, the massive 3D point cloud obtained can achieve professional-level measurement accuracy.
-
Extremely integrated
Seamless compatible with DJI M300 RTK, the system is designed for unprofessional users, through simple plug and play, the user can control and monitor the whole system by using integrated Apps in DJI's control unit; the data is well organized to be stored, with a simple one-click, the data can be downloaded locally.
-
Real-time monitoring
The real-time flight trajectory, 3D point cloud, and aerial view images can be transmitted back and displayed in DJI's control unit in order to help the user to evaluate the system in the air in real time.
EasyScan W30 was Applied to the River Surveying Project in China
