Precision Airborne Laser Scanning In Aerial LiDAR Easyscan W30
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Precision airborne laser scanning
,Easyscan W30 airborne laser scanning
,120m airborne lidar scanner
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EasySan W30 |
| Wavelength | 905nm |
| Measurement | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 5mm |
| FoV | Horizontal: 360°, Vertical: 40.0° (-20.8°~+19.5°) |
| Echo Mode | Single Echo, Dual Echo, Triple Echo |
| IMU | Integrated |
| Aerial Camera | Built in |
| Suggest Flying Height | 120-150m |
Easyscan W30 is tailored for easy aerial data capture. With the design concept of tight integration, the system highly integrates multiple sensors such as laser sensor, GNSS, high-precision IMU, and professional metric camera, which can be seamlessly compatible with DJI M300 RTK with an integrated control unit from DJI. The system brings customers a simple aerial survey experience with fully detailed 3D terrain data.
The W30 balances portability and precision, weighing only 960g while achieving a measurement accuracy of up to 5cm. This advanced system caters to diverse surveying needs, from topographic mapping to infrastructure assessments, ensuring reliable results every time.
| System Parameter | Value |
|---|---|
| Weight | 960g |
| Dimension | L150×W105×D121mm |
| Average Power Consumption | 30W |
| Power Supply | 12 ~ 30V DC |
| Device Interface | DJI Skyport/other interface available upon request |
| Data Storage | 256GB TF Card |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -30℃ ~ 60℃ |
| System Accuracy | 5cm |
| Operation Duration | 33min@M300 RTK UAV |
| Compatible Platform | DJI M300 RTK/Other UAV models |
| Laser Scanning Unit | Value |
|---|---|
| Laser Class | Class I |
| Wavelength | 905nm |
| Measurement Range | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 0.5cm |
| Horizontal FoV | 360° |
| Vertical FoV | 40.3° (-20.8° ~ +19.5°) |
| Scanning Point Frequency | Single Echo: 640000pts/s, Dual Echo: 1280000pts/s, Triple Echo: 1920000pts/s |
| Echo Mode | Single Echo/Dual Echo/Triple Echo |
| IMU | Value |
|---|---|
| GNSS Signal Tracking | BDS,GPS,GLONASS,GALILEO |
| Positioning Accuracy (Post-processing) | Plane:1cm / Elevation:2cm |
| Position Data Rate | 5HZ |
| Attitude Accuracy (Post-processing) | heading: 0.04° / pitch /roll: 0.008° |
| Attitude Data Rate | 200HZ |
| Aerial Camera (Built-in) | Value |
|---|---|
| Effective Pixels | 26MP |
| Sensor Dimension | 23.5×15.7mm |
| Image Resolution | 6252×4168 |
| Image Width FoV | 73° |
| GSD | 2.3cm@100m Flight Height |
The innovative design of the system makes the whole scanner smaller in size and only 960g in weight, which can effectively extend the flight time in the air.

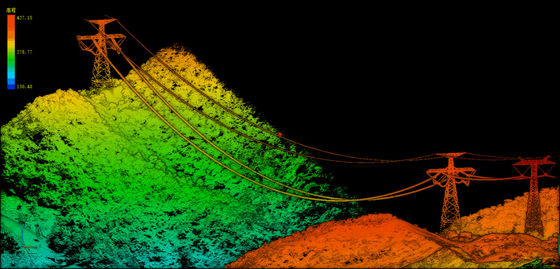

With the unique intelligent algorithm, the massive 3D point cloud obtained can achieve professional-level measurement accuracy.
Seamless compatible with DJI M300 RTK, the system is designed for unprofessional users, through simple plug and play. The user can control and monitor the whole system by using integrated Apps in DJI's control unit; the data is well organized to be stored, with a simple one-click, the data can be downloaded locally.
The real-time flight trajectory, 3D point cloud, and aerial view images can be transmitted back and displayed in DJI's control unit in order to help the user to evaluate the system in the air in real time.
