Lightweight W50 LiDAR High Performance Scanning Professional Surveying LiDAR
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EliteScan W50
Brand:
EPiC LiDAR
Model:
EliteScan W50
Wavelength:
1550nm
Measurement Range:
500m@20%/ 1000m@80%Reflectivity
Flight Height(Operating):
350m@20%/ 450m@35%Reflectivity
Ranging Accuracy:
5mm
Angle Measurement Resolution:
0.0018°
IMU:
Integrated
Aerial Camera:
External
Highlight:
W50 airborne laser scanning lidar
,Lightweight airborne laser scanning lidar
,1550nm surveying lidar
Product Description
Lightweight W50 LiDAR High Performance Scanning Professional Surveying LiDAR
Product Attributes
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EliteScan W50 |
| Wavelength | 1550nm |
| Measurement Range | 500m@20%/ 1000m@80%Reflectivity |
| Flight Height(Operating) | 350m@20%/ 450m@35%Reflectivity |
| Ranging Accuracy | 5mm |
| Angle Measurement Resolution | 0.0018° |
| IMU | Integrated |
| Aerial Camera | External |
Product Introduction
W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU and aerial camera. It features a long scanning range, lightweight, strong penetration and higher working efficiency than ever, which can deal with the most challenging and complex scenarios.
The W50 brings advanced scanning capabilities with its lightweight design and integrated high-resolution camera. Ideal for airborne use, it offers extended range, high-precision accuracy, and efficiency to tackle large-scale mapping and survey needs.
Product Specification
| System Parameter | Value |
|---|---|
| Weight | 1.21kg (Camera not Included) 1.40kg (Including 26 Megapixel Camera) |
| Dimension | L156*W90*H117mm |
| System Accuracy | Plane:5cm@150m Elevation:3cm@150m |
| Average Power Consumption | 45W (Typical Value) |
| Power Supply | 9~36V DC |
| Quick-release Interface | DJI Skyport/EPiC Quick-release Interface customized interface |
| Data Storage | High-speed USB Flash Drive (256GB) |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | 30℃~60℃ |
| Compatible Platform | DJI M300/M350/Multirotor /FixedWing |
Features
- Light Weight
Highly integrated with an overall weight 1.4kg only - Long Range
Typical flying height up to 400m - Strong Penetration
With 7 echo returns, it can penetrate into vegetation to acquire ground points easily - High Efficiency
Wider FoV and higher working efficiency
Application
Topographic Mapping
Electricity Inspection
Disaster Survey
Mining Mapping
Nature Resource Investigation
W50 LiDAR applications
Case Studies
Case Study 1
Case Study 2

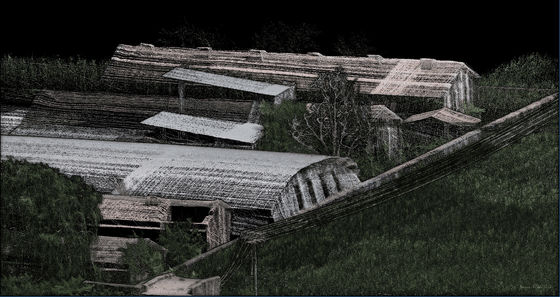

Sample Data Display
Sample Data 1
Sample Data 2
