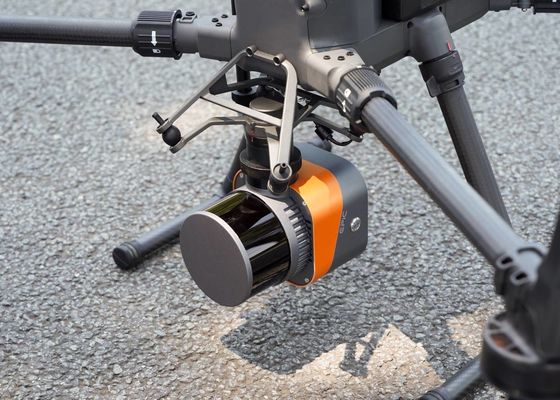

Aerial 3D Laser Scanning System For Real 3D And Smart Mining
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EasyScan W30
Brand:
EPiC LiDAR
Model:
EasySan W30
Wavelength:
905nm
Measurmentt:
100m@15% / 180m@35% / 300m@90%
Ranging Accurency:
5mm
FoV:
Horizontal: 360°， Vertical： 40.0°（-20.8°~+19.5°）
Echo Mode:
Single Echo, Dual Echo, Triple Echo
IMU:
Integrated
Aerial Camera:
Built In
Suggest Flying Height:
120-150m
Highlight:
Aerial 3d laser scanning system
,Smart Mining 3d laser scanning system
,905nm 3d scanner system
Product Description
Aerial 3D Laser Scanning System For Real 3D And Smart Mining
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EasySan W30 |
| Wavelength | 905nm |
| Measurement | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 5mm |
| FoV | Horizontal: 360°, Vertical: 40.0° (-20.8°~+19.5°) |
| Echo Mode | Single Echo, Dual Echo, Triple Echo |
| IMU | Integrated |
| Aerial Camera | Built in |
| Suggest Flying Height | 120-150m |
Product Description
With the design concept of tight integration, the system highly integrates multiple sensors such as laser sensor, GNSS, high-precision IMU, professional metric camera, etc., which can be seamlessly compatible with DJI M300 RTK with an integrated control unit from DJI. The system brings customers a simple aerial survey experience with fully detailed 3D terrain data.
Product Specification
| SYSTEM PARAMETER | |
|---|---|
| Weight | 960g |
| Dimension | L150×W105×D121mm |
| Average Power Consumption | 30W |
| Power Supply | 12 ~ 30V DC |
| Device Interface | DJI Skyport/other interface available upon request |
| Data Storage | 256GB TF Card |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -30℃ ~ 60℃ |
| System Accuracy | 5cm |
| Operation Duration | 33min@M300 RTK UAV |
| Compatible Platform | DJI M300 RTK/Other UAV models |
| LASER SCANNING UNIT | |
|---|---|
| Laser Class | Class I |
| Wavelength | 905nm |
| Measurement Range | 100m@15% / 180m@35% / 300m@90% |
| Ranging Accuracy | 0.5cm |
| Horizontal FoV | 360° |
| Vertical FoV | 40.3° (-20.8° ~ +19.5°) |
| Scanning Point Frequency | Single Echo: 640000pts/s, Dual Echo: 1280000pts/s, Triple Echo: 1920000pts/s |
| Echo Mode | Single Echo/Dual Echo/Triple Echo |
| IMU | |
|---|---|
| GNSS Signal Tracking | BDS,GPS,GLONASS,GALILEO |
| Positioning Accuracy (Post-processing) | Plane:1cm / Elevation:2cm |
| Position Data Rate | 5HZ |
| Attitude Accuracy (Post-processing) | heading: 0.04° / pitch /roll: 0.008 ° |
| Attitude Data Rate | 200HZ |
| AERIAL CAMERA (BUILT-IN) | |
|---|---|
| Effective Pixels | 26MP |
| Sensor Dimension | 23.5×15.7mm |
| Image Resolution | 6252×4168 |
| Image Width FoV | 73° |
| GSD | 2.3cm@100m Flight Height |
Features
- Ultra long endurance - The innovative design of the system makes the whole scanner smaller in size and only 960g in weight, which can effectively extend the flight time in the air.
- Ultra-high precision - With the unique intelligent algorithm, the massive 3D point cloud obtained can achieve professional-level measurement accuracy.
- Extremely integrated - Seamless compatible with DJI M300 RTK, the system is designed for unprofessional users, through simple plug and play, the user can control and monitor the whole system by using integrated Apps in DJI's control unit.
- Real-time monitoring - The real-time flight trajectory, 3D point cloud, and aerial view images can be transmitted back and displayed in DJI's control unit in order to help the user to evaluate the system in the air in real time.
Applications
Smart Grid
Topographic Survey
Emergency Rescue
Smart Mining
Water Conservancy & Hydrology
Nature Resource
Real 3D
Case Study
EasyScan W30 was Applied to inspect the powerline in China
Sample Data Display
