LiDAR Elite Scan T1000 1000m Long Range For Mine Monitoring
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC, ISO9001...
Model Number
EliteScan T1000
Measurement Range:
0.5~100m@20%
FoV:
Horizontal 360°， Vertical 268°
Accuracy:
5mm@100m
Weight:
3.7kg
Point Cloud Density:
10m: >25,000 Pts/㎡
HDR Imaging:
Yes
Ranging Accuracy:
3mm@100m
Laser Class:
Class Ⅰ
Wavelength:
1550nm
Highlight:
1000m Elite Scan
,Long Range Elite Scan
,3D Laser Scanner
Product Description
LiDAR Elite Scan T1000 1000m Long Range For Mine Monitoring
Product Attributes
| Attribute | Value |
|---|---|
| Measurement Range | 0.5~100m@20% |
| FoV | Horizontal 360°, Vertical 268° |
| Accuracy | 5mm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| HDR Imaging | Yes |
| Ranging Accuracy | 3mm@100m |
| Laser Class | Class Ⅰ |
| Wavelength | 1550nm |
Product Description

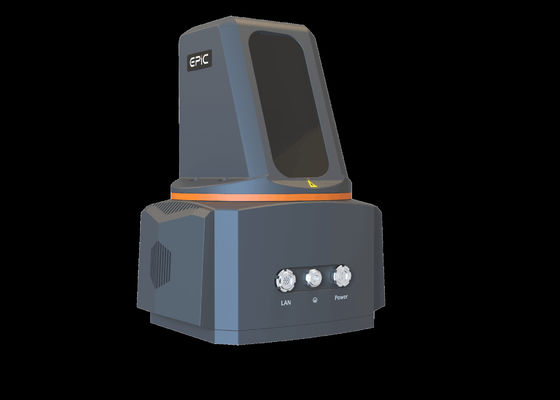

EPiC LiDAR EliteScan T1000 1000m Long Range for Mine Monitoring
A fully independently developed long-range 3D laser scanner features a compact and portable design, capable of quickly capturing extensive surface 3D data. It ensures the acquisition of high-fidelity 3D laser point clouds, even in a variety of complex conditions.
Product Specification
| System Parameter | Value |
|---|---|
| Weight | 7kg |
| Main Dimensions | L210*W163*H270mm |
| External Power Supply | Input Voltage 18~33V DC |
| Power Consumption | Typical 50W |
| Data Communication Interface | GigE |
| Humidity | 80%, Non-condensing |
| Operating Temperature | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C |
| Dual-axis Tilt Sensor Range | ±5° |
| Laser Scanning Unit | Value |
|---|---|
| Ranging Method | Pulse Ranging |
| Laser Class | Class I |
| Laser Pulse Repetition Rate | 00~2000 kHz |
| Max.Measuring Range | 1400m |
| Min. Measuring Range | 1.5m |
| Ranging Precision | 3mm@100m |
| Accuracy | 5mm@100m |
| Vertical FoV | 100°(-40°~+60°) |
| Horizontal FoV | 360° |
| Scanning Speed | Vertical:3-150 lines/sec Horizontal:max.18°/sec |
| Angle Measurement Resolution | 0.001° |
Key Features
- Long Range - Excellent ranging ability, max. measurement range up to 1400m.
- High Accuracy - Millimeter accuracy 5mm@100m, with more precision data details.
- IIPR - Developed with independent intellectual property rights, upgrade guaranteed.
- Easy Extension - Supports customized integration and SDK.
Applications
Polar Scientific Research
Mine Monitoring
BIM
Industry Metrology
Power Line Inspection
Special Structure
Case Study
EliteScan T1000 was Applied to Mine Monitoring in China
Sample Data Display
