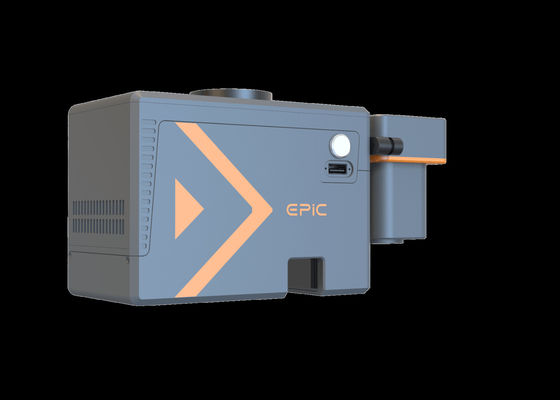

High Accuracy UAV Aerial LiDAR System Elite Scan W50
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EliteScan W50
Brand:
EPiC LiDAR
Model:
EliteScan W50
Wavelength:
1550nm
Measurement Range:
500m@20%/ 1000m@80%Reflectivity
Flight Height(Operating):
350m@20%/ 450m@35%Reflectivity
Ranging Accuracy:
5mm
Angle Measurement Resolution:
0.0018°
IMU:
Integrated
Aerial Camera:
External
Highlight:
UAV Elite Scan
,Aerial Elite Scan
,High Accuracy aerial lidar system
Product Description
High Accuracy UAV Aerial LiDAR System Elite Scan W50
Product Attributes
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EliteScan W50 |
| Wavelength | 1550nm |
| Measurement Range | 500m@20%/ 1000m@80% Reflectivity |
| Flight Height (Operating) | 350m@20%/ 450m@35% Reflectivity |
| Ranging Accuracy | 5mm |
| Angle Measurement Resolution | 0.0018° |
| IMU | Integrated |
| Aerial Camera | External |
Product Introduction
W50 is designed as a highly integrated airborne LiDAR system and its core parts are fully developed by EPiC LiDAR, including high-performance LiDAR, IMU, and aerial camera. It features a long scanning range, lightweight, strong penetration, and higher working efficiency than ever, which can deal with the most challenging and complex scenarios.
Product Specifications
System Parameter
| Parameter | Value |
|---|---|
| Weight | 1.21kg (Camera not Included) 1.40kg (Including 26 Megapixel Camera) |
| Dimension | L156*W90*H117mm |
| System Accuracy | Plane: 5cm@150m Elevation: 3cm@150m |
| Average Power Consumption | 45W (Typical Value) |
| Power Supply | 9~36V DC |
| Quick-release Interface | DJI Skyport/EPiC Quick-release Interface customized interface |
| Data Storage | High-speed USB Flash Drive (256GB) |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | 30℃~60℃ |
| Compatible Platform | DJI M300/M350/Multirotor /FixedWing |
Laser Scanning Unit
| Parameter | Value |
|---|---|
| Scanning Principle | Rotative Prism |
| Laser Class | Class |
| Wavelength | 1550nm |
| Measurement Range | 500m@20%/1000m@80% Reflectivity |
| Flight Height (Operating) | 350m@20%/450m@35% Reflectivity |
| Ranging Accuracy | 5mm |
| FoV | 90° |
| Angle Measurement Resolution | 0.0018° |
| Scanning Speed | 90~300 Lines/sec |
| Scanning Point Frequency | 100~1000 kHz |
| Echo Mode | 57 Return |
IMU
| Parameter | Value |
|---|---|
| GNSS Signal Tracking | BDS, GPS, GLONASS, GALILEO |
| Positioning Accuracy (Post-processing) | Plane: 1cm/Elevation: 2cm |
| Position Sampling Rate | 5H7 |
| Attitude Accuracy (Post-processing) | Heading: 0.04°, Pitch/Roll: 0.008° |
| Attitude Sampling Rate | 500HZ |
Aerial Camera (External)
| Parameter | 26MP | 45MP |
|---|---|---|
| Effective Pixels | 26MP | 45MP |
| Sensor Dimension | 025y15.6mn | 36x24mm |
| Image Resolution | 6240x4168 | 8192x5468 |
| ImageWidth FoV | 73° | 90° |
| GSD | 2.3cm@100m Flight Height | 2.Icm@100m Flight Height |
Features
- Light Weight: Highly integrated with an overall weight of 1.4kg only
- Long Range: Typical flying height up to 400m
- Strong Penetration: With 7 echo returns, it can penetrate into vegetation to acquire ground points easily
- High Efficiency: Wider FoV and higher working efficiency
Applications
Topographic Mapping
Electricity Inspection
Disaster Survey
Mining Mapping
Nature Resource Investigation
