1550nm 1400m Range Terrestrial Laser Scanner For Comprehensive Mapping
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
1550nm Terrestrial Laser Scanner
,1400m Terrestrial Laser Scanner
,Comprehensive Mapping terrestrial scanner
| Measurement Range | 0.5~100m@20% |
|---|---|
| Field of View | Horizontal 360°, Vertical 268° |
| Accuracy | 5mm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/m² |
| HDR Imaging | Yes |
| Ranging Accuracy | 3mm@100m |
| Laser Class | Class I |
| Wavelength | 1550nm |

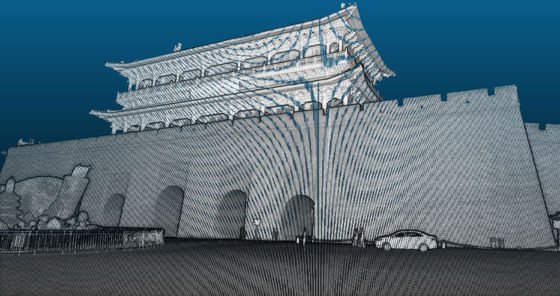

A fully independently developed long-range 3D laser scanner featuring a compact and portable design, capable of quickly capturing extensive surface 3D data. Ensures acquisition of high-fidelity 3D laser point clouds in various complex conditions.
Equipped with independent IP and SDK support, the T1000 offers exceptional accuracy and data quality for demanding applications. Its dual-axis tilt sensor and high scan speed make it a versatile solution for precise surface and structure inspections.
| System Parameter |
Weight: 7kg Main Dimensions: L210×W163×H270mm External Power Supply: 18~33V DC Power Consumption: Typical 50W Data Communication Interface: GigE Humidity: 80%, Non-condensing Operating Temperature: -20°C~+50°C Storage Temperature: -30°C~+60°C Dual-axis Tilt Sensor Range: ±5° |
|---|---|
| Laser Scanning Unit |
Ranging Method: Pulse Ranging Laser Class: Class I Laser Pulse Repetition Rate: 00~2000 kHz Max. Measuring Range: 1400m Min. Measuring Range: 1.5m Ranging Precision: 3mm@100m Accuracy: 5mm@100m Vertical FoV: 100°(-40°~+60°) Horizontal FoV: 360° Scanning Speed: Vertical: 3-150 lines/sec, Horizontal: max.18°/sec Angle Measurement Resolution: 0.001° |
- Long Range: Excellent ranging ability with maximum measurement range up to 1400m.
- High Accuracy: Millimeter accuracy 5mm@100m, capturing precise data details.
- IIPR: Developed with independent intellectual property rights, ensuring upgrade capability.
- Easy Extension: Supports customized integration and SDK for flexible applications.
