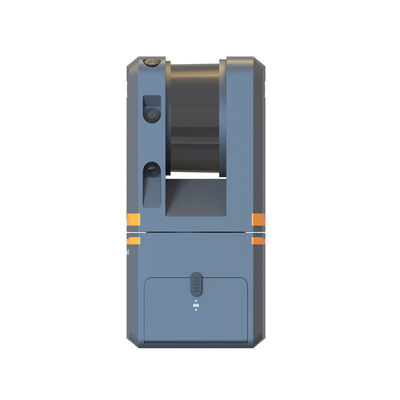

100m Measurement 3D Terrestrial Laser Scanner 905nm Wavelength
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
100m Terrestrial Laser Scanner
,905nm Terrestrial Laser Scanner
,Class I terrestrial laser scanner tls
| Measurement Range | 0.5m～100m@20% |
|---|---|
| Field of View | Horizontal 360°, Vertical 268° |
| Accuracy | 1cm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| HDR Imaging | Yes |
| Laser Class | Class Ⅰ |
| Wavelength | 905nm |
Lightweight & Exquisite | Easy scanning
The overall design of the system is extremely lightweight, and a variety of sensors are highly integrated, which can ensure the rapid and effective acquisition of high-precision true color point clouds under different application scenarios, and lead a new development direction of the terrestrial 3D laser scanner.
| System Parameter |
Weight: 3.7kg Dimension: LI25*WI24*H265mm Average Power Consumption: 20W Battery Duration: 2hr For single Battery FoV: Horizontal 360°,Vertical 268° Data Storage: U-Disk 64GB Operating Temperature: -10°C~50°C Storage Temperature: -20°C~60°C Aluminum Alloy tripod: Weight:1.92kg, Safe Load:8kg max, Height:1.49m |
|---|---|
| Laser Scanning Unit |
Scan Principle: ToF Laser Class: Class I Wavelength: 905nm Measurement Range: 0.5m～100m@20% Scanning Point Frequency: 320,000pts/s |
| Operation Performance |
Precision: 1cm@100m Ranging Accuracy: 5mm@10m, 8mm@30m, 1cm@100m Minimum Data Collection Time: 60s Point Density: 0m:>25,000pts/m², 30m:>3,200pts/m², 100m:>300pts/m² |
| Embedded Camera |
FoV: 360° Image Resolution: 66MP |
- High Integration: With three embedded high-definition cameras and one smart battery.
- High Accuracy: 5mm point cloud accuracy and pixel-level colorization.
- Intelligent Workflow: One-click to collect data, it can calculate and splice data automatically.
EasyScan T05 Applied to BIM in Japan
