T1000 Compact Long Range 3D Scanning For Enhanced Data Detail

MOQ:	1 set
Price:	Contact us
Standard Packaging:	Tool Case
Delivery Period:	2 weeks
Payment Method:	L/C, T/T
Supply Capacity:	100 Sets/ Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

EPiC LiDAR

Certification

CE, FCC, ISO9001...

Model Number

EliteScan T1000

Measurement Range:

0.5~100m@20%

Horizontal 360°， Vertical 268°

Accuracy:

5mm@100m

Weight:

3.7kg

Point Cloud Density:

10m: >25,000 Pts/㎡

HDR Imaging:

Ranging Accuracy:

3mm@100m

Laser Class:

Class Ⅰ

Wavelength:

1550nm

Highlight:

T1000 Long Range Laser Scanner

1550nm Long Range Laser Scanner

ClassⅠ long range 3d scanning

Product Description

EliteScan T1000: High-Precision 3D Scanning for Long-Range Applications

Product Introduction

A fully independently developed long-range 3D laser scanner features a compact and portable design, capable of quickly capturing extensive surface 3D data. It ensures the acquisition of high-fidelity 3D laser point clouds, even in a variety of complex conditions.

The EliteScan T1000 captures detailed 3D scans with 5mm accuracy at 100m, even in complex or extreme environments. Perfect for mine monitoring and BIM, it provides precise, customizable data with easy integration options.

Product Specification

System Parameter	Weight	7kg
	Main Dimensions	L210W163H270mm
	External Power Supply	Input Voltage 18~33V DC
	Power Consumption	Typical 50W
	Data Communication Interface	GigE
	Humidity	80%, Non-condensing
	OperatingTemperature	-20C~+50℃
	Storage Temperature	-30℃~+60℃
	Dual-axis Tilt Sensor Range	±5°
Laser Scanning Unit	Ranging Method	Pulse Ranging
	Laser Class	Class I
	Laser Pulse Repetition Rate	00~2000 kHz
	Max.Measuring Range	1400m
	Min. Measuring Range	1.5m
	Ranging Precision	3mm@100m
	Accuracy	5mm@100m
	Vertical FoV	100°(-40°~+60°)
	Horizontal FoV	360°
	Scanning Speed	Vertical:3-150 lines/sec
	Scanning Speed	Horizontal:max.18°/sec
	Angle Measurement Resolution	0.001°

Accessories

Features:

Long Range

Excellent ranging ability, max. measurement range up to 1400m.

High Accuracy

Millimeter accuracy 5mm@100m, with more precision data details.

IIPR

Developed with independent intellectual property rights, upgrade guaranteed

Easy Extension

Supports customized integration and SDK.

Application:

T1000 Compact Long Range 3D Scanning For Enhanced Data Detail 0

Polar Scientific Mine Monitoring BIM Industry Power Line Special

Research Metrology Inspection Structure

Case

EliteScan T1000 was Applied to Mine Monitoring in China

T1000 Compact Long Range 3D Scanning For Enhanced Data Detail 1

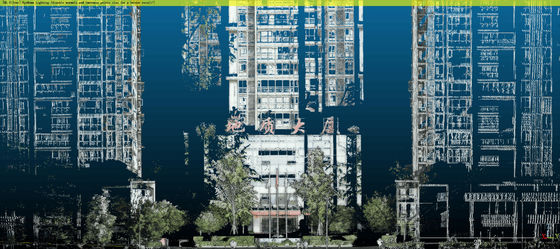

Sample Data Display

T1000 Compact Long Range 3D Scanning For Enhanced Data Detail 2
