Long Range 1000m 3D Tls Terrestrial Laser Scanner EliteScan T1000
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
Long Range tls terrestrial laser scanner
,1000m tls terrestrial laser scanner
,EliteScan tls laser scanner
Elite Scan T1000
T1000 is a fully self-developed high-precision and long range of terrestrial laser scanner. The system is designed to be most compact and portable. It can capture 3D topographic data in a wider land scape quickly, enabling to acquire true color of 3D point cloud in most demanding scenarios.
Product Specification
|
System Parameter |
Weight | 7kg |
| Main Dimensior | L210*W163*H270mm | |
| External Power Supply | Input Voltage 18~33V DC | |
| Power Consumption | Typical 50W | |
| Data Communication Interface | GigE | |
| Humidity | 80%, Non-condensing | |
| OperatingTemperature | -20C~+50℃ | |
| Storage Temperature | -30℃~+60℃ | |
| Dual-axis Tilt Sensor Range | ±5° | |
|
Laser Scanning Unit |
Ranging Method | Pulse Ranging |
| Laser Class | Class I | |
| Laser Pulse Repetition Rate | 00~2000 kHz | |
| Max.Measuring Range | 1400m | |
| Min.Measuring Range | 1.5m | |
| Ranging Precision | 3mm@100m | |
| Accuracy | 5mm@100m | |
| Vertical FoV | 100°(-40°~+60°) | |
| Horizontal FoV | 360° | |
|
Scanning Speed |
Vertical:3-150 lines/sec | |
| Horizontal:max.18°/sec | ||
| Angle Measurement Resolution | 0.001° |
Long Range
Excellent ranging ability, max. measurement range up to 1400m.
High Accuracy
Millimeter accuracy 5mm@100m,with more precision data details.
IIPR
Developed with independent intellectual property rights, upgrade guaranteed
Easy Extension
Supports customized integration and SDK.
Polar Scientific Mine Monitoring BIM Industry Power Line Special
Research Metrology Inspection Structure

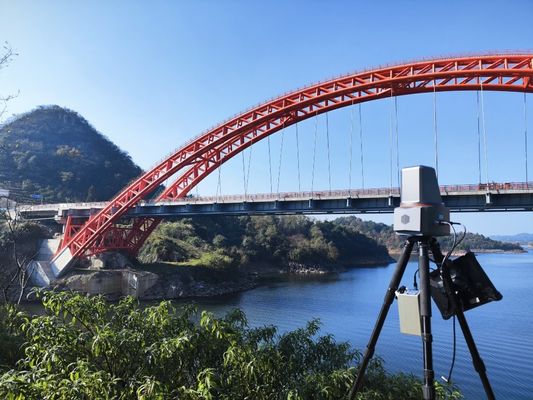

EliteScan T1000 was Applied to Inspect Bridge
