State 3D Laser Scanner Long Range 1000m EliteScan T1000 For Construction BIM
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC, ISO9001...
Model Number
EliteScan T1000
Measurement Range:
0.5~100m@20%
FoV:
Horizontal 360°， Vertical 268°
Accuracy:
5mm@100m
Weight:
3.7kg
Point Cloud Density:
10m: >25,000 Pts/㎡
HDR Imaging:
Yes
Ranging Accuracy:
3mm@100m
Highlight:
Construction BIM Long Range Laser Scanner
,1000m Long Range Laser Scanner
,Long Range scanner 3d lidar
Product Description
EliteScan T1000 3D Laser Scanner
Key Specifications
| Attribute | Value |
|---|---|
| Measurement Range | 0.5~100m@20% |
| Field of View | Horizontal 360°, Vertical 268° |
| Accuracy | 5mm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| HDR Imaging | Yes |
| Ranging Accuracy | 3mm@100m |
Product Overview
The EliteScan T1000 is a state-of-the-art terrestrial 3D laser scanner designed for precise and efficient data acquisition in large-scale surveying applications. Featuring a highly integrated system, the T1000 delivers exceptional performance with high-speed scanning capabilities and unparalleled accuracy, making it suitable for a wide range of professional uses.
System Parameters
Weight: 7kg | Dimensions: L210×W163×H270mm | Power: 18-33V DC, 50W typical
Laser Scanning Unit
Ranging Method: Pulse Ranging | Laser Class: I | Pulse Rate: 00-2000 kHz
Range: 1.5m-1400m | Accuracy: 5mm@100m | FOV: 360°×100°
Key Features
Long Range: Excellent ranging ability up to 1400m
High Accuracy: Millimeter precision (5mm@100m)
IIPR: Developed with independent intellectual property rights
Easy Extension: Supports customized integration and SDK
Applications
Polar Research
Mine Monitoring
BIM
Industry Metrology
Power Line Inspection
Special Structures

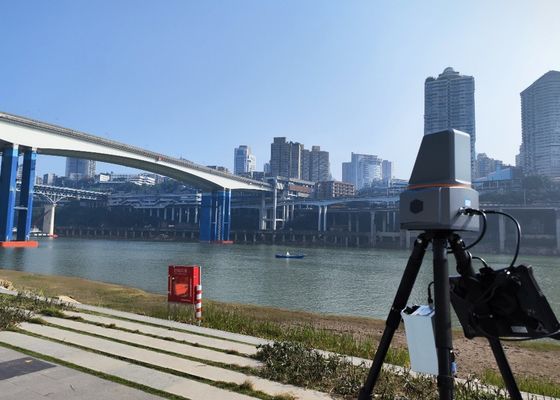

Case Study: Bridge Inspection
Sample Data
