High Precision 3D Scanning Long Range Laser Scanner 1550nm Wavelength
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
High Precision Long Range Laser Scanner
,Long Range Laser Scanner 1550nm
,high precision 3d laser scanner
| Attribute | Value |
|---|---|
| Measurement Range | 0.5~100m@20% |
| FoV | Horizontal 360°, Vertical 268° |
| Accuracy | 5mm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| HDR Imaging | Yes |
| Ranging Accuracy | 3mm@100m |
| Laser Class | Class I |
| Wavelength | 1550nm |
EPiC EliteScan T1000: Powerful LiDAR For Extended Range And Accuracy
A fully independently developed long-range 3D laser scanner features a compact and portable design, capable of quickly capturing extensive surface 3D data. It ensures the acquisition of high-fidelity 3D laser point clouds, even in a variety of complex conditions.
Designed for challenging environments, the T1000 captures high-fidelity 3D data at distances up to 1400m. With advanced pulse ranging and millimeter accuracy, it's well-suited for mine monitoring, metrology, and industrial applications.
| System Parameter | Value |
|---|---|
| Weight | 7kg |
| Main Dimensions | L210*W163*H270mm |
| External Power Supply | Input Voltage 18~33V DC |
| Power Consumption | Typical 50W |
| Data Communication Interface | GigE |
| Humidity | 80%, Non-condensing |
| Operating Temperature | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C |
| Dual-axis Tilt Sensor Range | ±5° |
| Laser Scanning Unit | Value |
|---|---|
| Ranging Method | Pulse Ranging |
| Laser Class | Class I |
| Laser Pulse Repetition Rate | 00~2000 kHz |
| Max. Measuring Range | 1400m |
| Min. Measuring Range | 1.5m |
| Ranging Precision | 3mm@100m |
| Accuracy | 5mm@100m |
| Vertical FoV | 100°(-40°~+60°) |
| Horizontal FoV | 360° |
| Scanning Speed | Vertical:3-150 lines/sec Horizontal:max.18°/sec |
| Angle Measurement Resolution | 0.001° |
-
Long Range
Excellent ranging ability, max. measurement range up to 1400m.
-
High Accuracy
Millimeter accuracy 5mm@100m, with more precision data details.
-
IIPR
Developed with independent intellectual property rights, upgrade guaranteed.
-
Easy Extension
Supports customized integration and SDK.

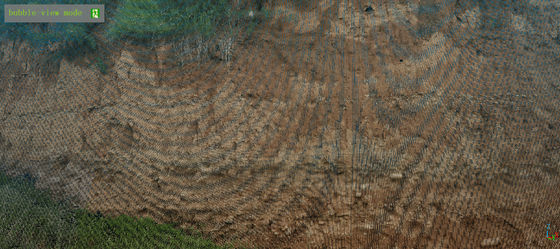

EliteScan T1000 was Applied to Mine Monitoring in China
