EliteScan T1000 Portable LiDAR Solution For Large Scale Projects
| MOQ: | 1 set |
| Price: | Contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 Sets/ Month |
EliteScan Long Range Laser Scanner
,Portable Long Range Laser Scanner
,1550nmlidar solution
| Measurement Range | 0.5~100m@20% |
|---|---|
| Field of View | Horizontal 360°, Vertical 268° |
| Accuracy | 5mm@100m |
| Weight | 3.7kg |
| Point Cloud Density | 10m: >25,000 pts/㎡ |
| HDR Imaging | Yes |
| Ranging Accuracy | 3mm@100m |
| Laser Class | Class I |
| Wavelength | 1550nm |
EliteScan T1000: High-Precision 3D Scanning for Long-Range Applications
A fully independently developed long-range 3D laser scanner features a compact and portable design, capable of quickly capturing extensive surface 3D data. It ensures the acquisition of high-fidelity 3D laser point clouds, even in a variety of complex conditions.

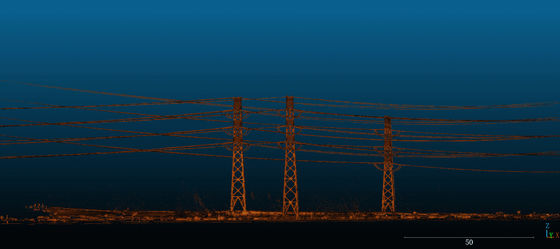

With its compact, lightweight design, the T1000 combines long-range scanning and millimeter-level precision. It's tailored for industries needing reliable, detailed data, from scientific research to power line inspection.
| System Parameter |
Weight: 7kg Main Dimensions: L210*W163*H270mm External Power Supply: Input Voltage 18~33V DC Power Consumption: Typical 50W Data Communication Interface: GigE Humidity: 80%, Non-condensing Operating Temperature: -20°C~+50°C Storage Temperature: -30°C~+60°C Dual-axis Tilt Sensor Range: ±5° |
|---|---|
| Laser Scanning Unit |
Ranging Method: Pulse Ranging Laser Class: Class I Laser Pulse Repetition Rate: 00~2000 kHz Max. Measuring Range: 1400m Min. Measuring Range: 1.5m Ranging Precision: 3mm@100m Accuracy: 5mm@100m Vertical FoV: 100°(-40°~+60°) Horizontal FoV: 360° |
| Scanning Speed |
Vertical: 3-150 lines/sec Horizontal: max.18°/sec Angle Measurement Resolution: 0.001° |
- Long Range: Excellent ranging ability, max. measurement range up to 1400m.
- High Accuracy: Millimeter accuracy 5mm@100m, with more precision data details.
- IIPR: Developed with independent intellectual property rights, upgrade guaranteed.
- Easy Extension: Supports customized integration and SDK.
EliteScan T1000 was Applied to Mine Monitoring in China
