Precision Flexibility SLAM LiDAR Scanner For 3D Modeling EasyScan M10 / M10+
| MOQ: | 1 set |
| Price: | contact us |
| Standard Packaging: | Tool Case |
| Delivery Period: | 2 Weeks |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 sets per Month |
Detail Information
Place of Origin
China
Brand Name
EPiC LiDAR
Certification
CE, FCC
Model Number
EasyScan M10 / M10+
Brand:
EPiC LiDAR
Model:
EasyScan M10/ M10+
Absolute Accuracy:
5cm
FoV:
280°×360
Scan Frequency:
320000 Pts/S, 640000 Pts/S
Relative Accuracy:
3cm
Battery Life:
2.5h Per Battery
Highlight:
Precision SLAM LiDAR Scanner
,640000 Pts/S SLAM LiDAR Scanner
,320000 Pts/S lidar for 3d scanning
Product Description
Precision Flexibility SLAM LiDAR Scanner For 3D Modeling EasyScan M10 / M10+
Product Specifications
| Attribute | Value |
|---|---|
| Brand | EPiC LiDAR |
| Model | EasyScan M10/ M10+ |
| Absolute Accuracy | 5cm |
| FoV | 280°×360 |
| Scan Frequency | 320000 Pts/S, 640000 Pts/S |
| Relative Accuracy | 3cm |
| Battery Life | 2.5h per battery |
EasyScan M10/M10+: Precision and Flexibility for 3D Modeling
With 360° rotate scanning mode and unique 3D SLAM algorithm technology, it can acquire high-precision and high-density 3D color point clouds in the adjacent space quickly and easily in the environment without GNSS.
The M10/M10+ LiDAR system offers exceptional detail with a scanning frequency of up to 640,000 points per second, capturing detailed 3D models suitable for building mapping, digital malls, and infrastructure.
Technical Specifications
| System Parameter | Model | M10 | M10+ |
|---|---|---|---|
| Mainbody Weight | 2.42kg (Including the scanner, Camera And Antenna) | ||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -20℃~60℃ | ||
| Storage Consumption | 20W | ||
| Power Supply | 10~16.8V DC | ||
| Battery Duration | 2.5h For Single Battery | ||
| Data Storage | USB-disk 64GB | ||
| Compatible Platform | Backpack / Handheld | ||
| Laser Scanning Unit | M10 | M10+ | |
|---|---|---|---|
| Max Measurement Range | 120m | 120m | |
| Laser Class | Class Ⅰ | ||
| FoV | 280°×360 | ||
| Wavelength | 905nm | ||
| Camera FoV | 360° | ||
| Scanning Point Frequency | 320,000pts/s | 640,000pts/s | |
| Relative Accuracy | 3cm | ||
| Absolute Accuracy | 5cm | ||
| Camera Resolution | 2MF | ||
Key Features
- Dual Modes - Available in handheld and backpack modes, flexible switch to meet various working requirements
- Simplified Operation - RTK and camera integrated design, able to obtain true-color point cloud with georeference coordinates at once
- High Precision - Relative Accuracy<3cm, Absolute Accuracy<5cm
- One-stop Post-Process Solution - Automatically removing noise points, one-click mesh modeling
Applications
Included Accessories
- Laser Scanner *1
- Control Box *1
- Panoramic camera *1
- Backpack *1
- GNSS *1
- Handheld Handle *1
- Scanner Kit *2
- Connect Cable *1
- Charge Cable *1
- Charge adapter *1
- Smart Battery *2
- Charge Kit *1
- Dongle *1
- USB-Disk *1
- Shoulder Strap *1

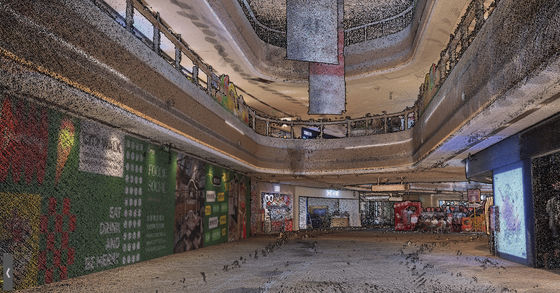

Sample Data Display
